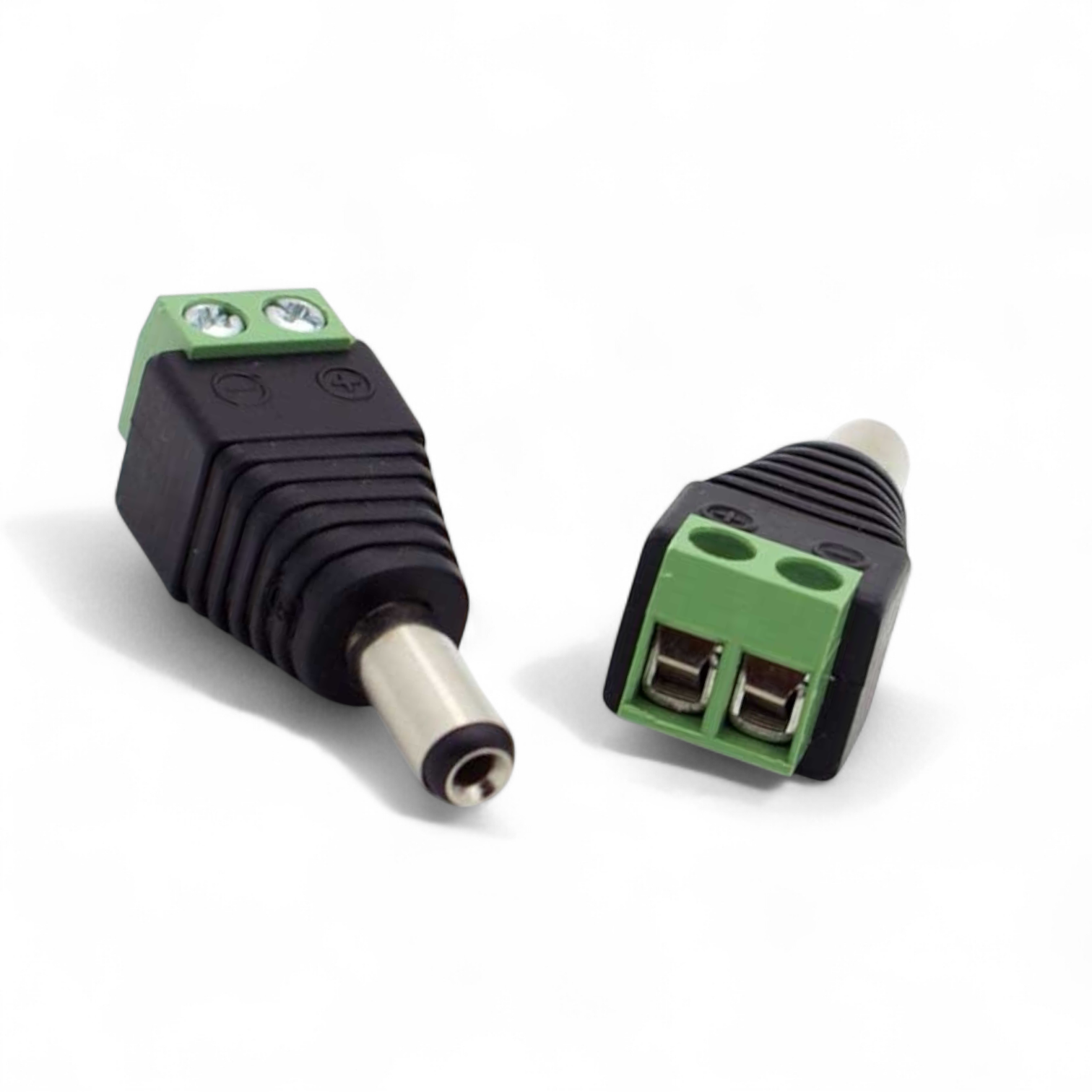

If you’re a flight enthusiast or part of a commercial flight school, you know how crucial reliable power connections are, whether you’re working with simulators, flight control boards, or any aviation electronics. The 2.5mm/5.5mm DC power connector male is designed specifically to provide a secure and efficient power supply connection for all your devices. From wiring your Mega2560 boards in cockpit setups to powering auxiliary aviation equipment, this connector blends robustness and convenience in one compact plug.
Imagine prepping your flight simulator for a long training session only to experience flickering power or connection failures. That’s the last thing you want when simulating critical flight maneuvers. This male DC power connector ensures consistent electrical contact with minimal interference, making your setup dependable every time you plug in.
The male connector’s 2.5mm inner diameter and 5.5mm outer diameter perfectly match a wide range of power jacks typically found on devices like the Mega2560 board, allowing smooth wiring integration. Its design caters specifically to those who need robust connections that won’t come loose during active simulation or fieldwork.
Whether you’re setting up a flight training lab or upgrading your personal simulator, every inch of equipment counts. An unreliable power connection can cause frustrating interruptions or even hardware damage. This 2.5mm/5.5mm male DC power connector eliminates worries with dependable contact quality and a fit that speaks the language of aviation electronics.
Flight enthusiasts will appreciate how simple this connector makes power management—no more fumbling with poor-fitting plugs or worrying about compatibility. Commercial flight schools can benefit from uniformity and ease of device maintenance by standardizing their power cable connectors to this specification.
Installation is straightforward: solder wires to the connector terminals based on polarity requirements of your device, then plug the male connector into your 5.5mm power jack or device socket—like a Mega2560 board used in flight control applications. The tight fit ensures wiring stays intact even during heavy use or vibration in simulator setups.
It’s compatible with most devices requiring a 2.5mm inner / 5.5mm outer diameter DC plug, especially common in flight electronics and boards like Mega2560.
This connector is designed exclusively for DC power supply connections, not for data signals.
High-quality materials ensure it withstands repeated wiring and plugging without loss of contact or damage.
Not at all. The connector terminals separate positive and negative poles clearly, making wiring user-friendly.
Yes, its design guarantees a firm and stable locking in common 2.5mm/5.5mm DC power jacks favored in flight simulation gear.
Don’t risk power disruptions during critical flight training or personal simulation sessions. Equip your aviation electronics with the trusted 2.5mm/5.5mm DC power connector male for stable, long-lasting power delivery. Order now and experience plug-and-play convenience while keeping your flight systems running smoothly!
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
