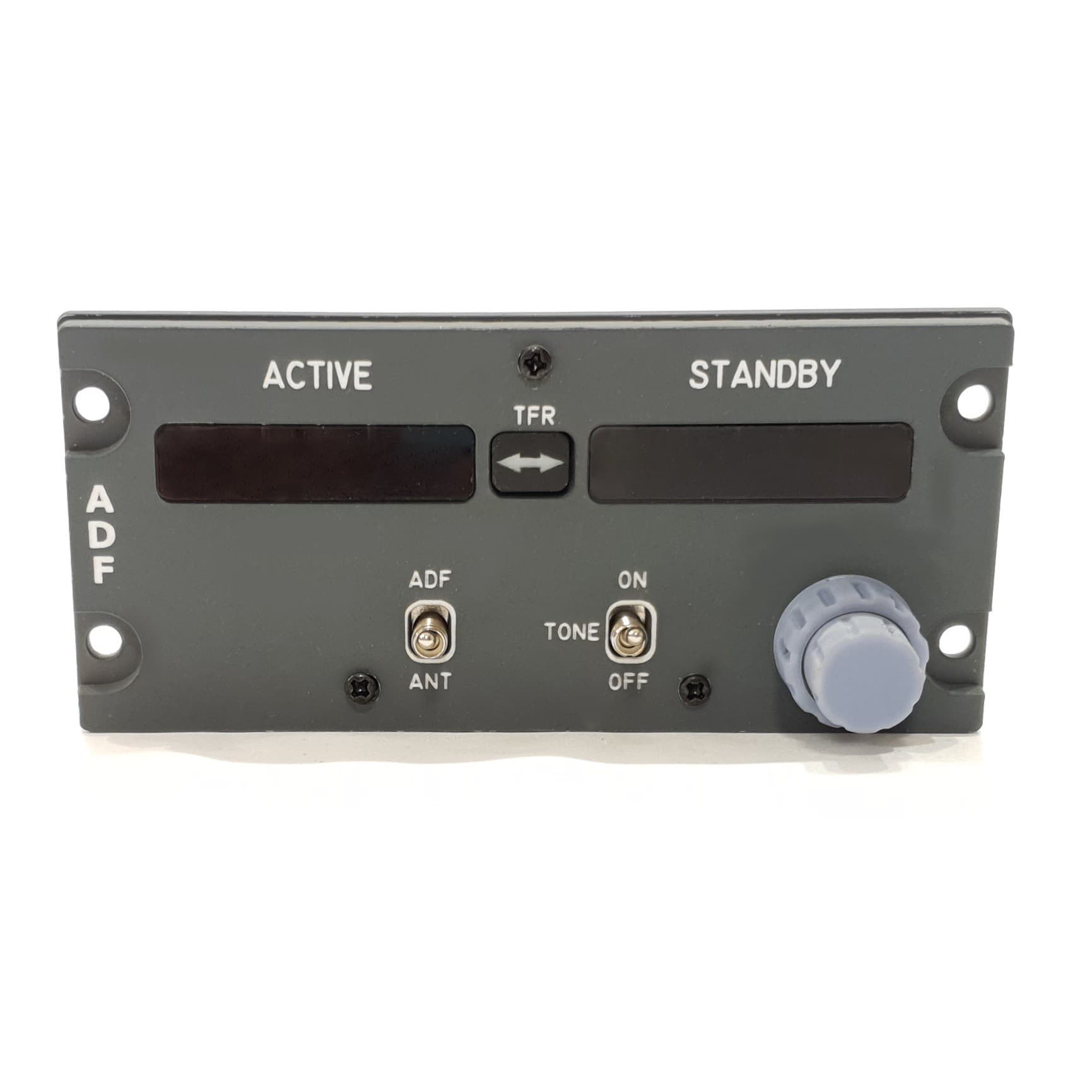

Authentic ADF Panel Boeing 737 Replica for Flight Sim Enthusiasts

Step into the cockpit with the meticulously crafted ADF Panel Boeing 737 replica, designed specifically for flight enthusiasts and commercial flight schools. This aircraft instrument panel is not just a static display—it’s a fully detailed flight control interface that brings realism right to your simulator setup. Constructed from durable acrylic sheets, the panel features a dual-layer design: a sturdy 3mm lower sheet paired with a 5mm thick upper front sheet for authentic depth and realism.

Painted in the iconic Boeing gray RAL 7011, this aviation control panel mirrors the genuine Boeing 737 aesthetic with precision. Every detail has been thoughtfully recreated, from the warm white backlighting of the annunciator boxes and buttons to the striking red segment displays that enhance visibility just like the original aircraft panel. Whether you’re a flight sim enthusiast wanting an upgrade or a commercial flight school seeking quality training tools, this replica panel combines form and function like no other.

Discover the Benefits of Our Boeing 737 ADF Panel

Enhance your flight sim setup with a panel that doesn’t just look great but also offers true-to-life functionality. The included knobs and buttons—push buttons and rotary knobs with and without labels—are engineered to replicate the feeling and operation of a real aircraft control interface. The PCB on the backside comes with an IDC connector where each pin is dedicated to specific panel functions, making integration simple and efficient.

Designed for ease of use and installation, the panel’s backlighting operates with a separate 12-volt connector, producing a warm white glow that mimics the original cockpit ambiance. This authentic illumination ensures your training or simulation session captures the real feel of flying the Boeing 737, especially in low-light conditions. The red displays provide clear and crisp feedback on your instrumentation, improving both usability and the immersive experience.

Specifications At a Glance

• Panel Size: 67mm x 146mm — perfect compact design for your simulator rig
• Material: Dual acrylic sheets (3mm and 5mm) painted Boeing Gray (RAL 7011)
• Backlighting: Warm white LED lights for annunciators, buttons, and knobs
• Electrical: 12 volts connection for backlighting; IDC connector for PCB pins
• Displays: Red 7-segment annunciator boxes for authentic instrument readout
• Includes push buttons and rotary knobs replicating actual Boeing 737 controls
• Comes with downloadable data sheets for easy wiring and integration

This panel’s design balances robust construction with accurate aesthetics and detailed annunciator functionality. It’s a concept loved by the flight simulation community and valued by professional aviation trainers alike because it upgrades your simulator to meet training-grade quality standards.

Addressing Your Flight Simulator Needs

Wondering if this Boeing 737 ADF Panel fits your flight sim rig or training course? Its compact dimensions make it straightforward to integrate into custom or off-the-shelf panels, and the clear documentation simplifies installation. The warm white backlighting avoids glare, reducing hand-eye strain during long sessions. The sturdy acrylic construction ensures longevity, so your panel keeps its professional appearance and operability, even with frequent use.

Engineered with precision and practical user experience in mind, this ADF Panel is a go-to solution for enhancing pilot training realism and flight simulation enjoyment. It’s the perfect blend of detailed engineering and accessible technology that speaks to both beginners and seasoned flight enthusiasts.

Your Next Step in Flight Simulation

Elevate your aviation training environment or personal simulator setup with an ADF Panel Boeing 737 replica that delivers on all fronts—design, function, and style. Don’t settle for less when preparing for real-world flying or immersive sim sessions. Embrace a piece of aviation history with true-to-life controls, brilliantly backlit annunciators, and a robust, easy-to-install construction.

Order your Simbay Boeing 737 ADF Panel today to join a community of passionate flight sim enthusiasts who trust authentic, quality aviation hardware for their setups. Fly smarter, train harder, and enjoy every simulated flight as if you were behind the real controls.

Frequently Asked Questions

Q: What voltage does the panel backlighting require?

A: The backlighting operates on 12 volts via a separate connector, ensuring a warm white glow with low power consumption.

Q: Are the knobs and buttons functional or just for show?

A: All knobs and buttons are fully functional, designed as push buttons and rotary knobs to replicate specific Boeing 737 panel operations.

Q: Can I integrate this panel with other flight simulator hardware?

A: Yes, the backside PCB includes an IDC connector with pins labeled for specific functions. A detailed data sheet is available for download to guide integration.

Q: What sizes and materials are used in the panel’s construction?

A: The panel is made with two acrylic sheets—3mm at the rear and 5mm on the front—painted in Boeing Gray RAL 7011 for authenticity. The size measures 67mm by 146mm.

Q: Is the panel suitable for commercial flight schools?

A: Absolutely. This replica is designed to meet the demands of both flight enthusiasts and commercial training programs seeking realistic and durable aircraft panel components.
