Additional Information
Weight | 0,05 kg |
---|---|
Dimensions | 8 × 5 × 5 cm |
98 in stock
39,00 € excluding Tax
Weight | 0,05 kg |
---|---|
Dimensions | 8 × 5 × 5 cm |
Only logged in customers who have purchased this product may leave a review.

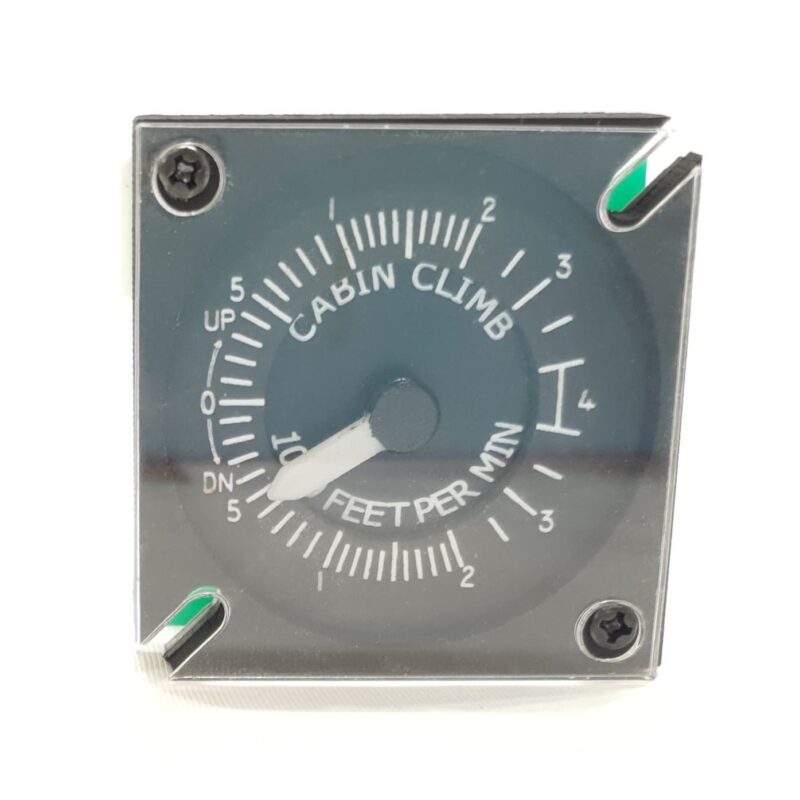

For flight enthusiasts and commercial flight schools, the Boeing 737 Cabin Climb Gauge Overhead offers a truly immersive and realistic addition to your flight simulator. This servo driven gauge accurately replicates the aircraft’s cabin climb indicator, providing vital feedback during simulation flights. Installed on the overhead panel, it is designed for seamless integration and enhanced aircraft realism.
The gauge features warm white lighting, perfect for replicating authentic cockpit ambiance while ensuring visibility during day or night simulations. Easily powered by a 12-volt power supply, it supports long hours of operation without compromising performance. Plus, a sturdy front glass is installed to protect the instrument face, keeping your gauge looking crisp and clear even after frequent use.
Imagine sitting in a highly detailed cockpit setup where every instrument not only looks authentic but also reacts precisely. This flight simulator gauge is designed to work flawlessly with popular flight simulator programs like Simvim and Mobiflight, making it a versatile aircraft simulator component for various setups. Whether you’re training pilots in a commercial flight school or perfecting your home cockpit, the responsive servo driven mechanism ensures smooth, realistic needle movements that bring your 737 Cabin Climb indicator to life.
We understand that accuracy and reliability are key when setting up your flight simulator. Our adjustable Boeing 737 Cabin Climb gauge takes the guesswork out of connecting hardware with software. Should you ever face calibration challenges or need tweaks to the servo settings, our team offers free adjustments — a commitment to your long-term satisfaction and performance consistency.
Many flight schools and home cockpit builders have already integrated this aircraft simulator accessory into their setups, praising its build quality and compatibility. By choosing this overhead panel instrument, you’re not just purchasing a gauge; you’re investing in an authentic flight experience that builds your piloting skills or enhances your aviation passion.
Take your simulator cockpit to the next level with the Boeing 737 Cabin Climb Gauge. Its combination of servo-driven precision, warm lighting, and sturdy construction guarantees both realism and durability. Whether you’re a serious flight enthusiast or a commercial flight school instructor, this gauge offers a unique value that’s hard to beat.
Don’t settle for less when training or experiencing flight simulation. Order your Boeing 737 Cabin Climb Gauge today and experience the next dimension of flight realism!
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
Cet ensemble comprend les panneaux avant et arrière, tous les voyants, boutons et protections de commutateur.
Remarque : aucun composant électronique n’est inclus. Vous devrez acheter séparément les commutateurs, les commutateurs à bascule, les commutateurs rotatifs, les encodeurs ou les potentiomètres.
Il s’agit d’une unité entièrement fonctionnelle qui doit être connectée via les broches du connecteur IDC à l’arrière du circuit imprimé à une carte de contrôleur. Une programmation est nécessaire.
L’agencement des broches est soit imprimé sur le circuit imprimé, soit fourni dans une fiche technique séparée.
Cette version est pré-programmée et prête pour l’USB pour une utilisation avec le logiciel de simulation de vol de votre choix.
Il suffit de le brancher, d’installer les fichiers de configuration fournis et vous êtes prêt à voler !
Remarque sur l’alimentation électrique :
Comme les panneaux peuvent être chaînés en utilisant leurs connecteurs d’alimentation, les produits à panneau unique n’incluent pas d’adaptateur secteur 12V. Un seul adaptateur est nécessaire pour alimenter l’ensemble de votre installation de cockpit personnalisée. L’alimentation électrique est utilisée uniquement pour l’éclairage de fond, pas pour les fonctions de base du produit.
Tous les boutons sont des composants 3D imprimés en résine de haute qualité avec des conceptions réalistes. Ils sont fournis avec un adaptateur en forme de D.
Pour les modifications ou les exigences personnalisées, veuillez contacter notre équipe d’assistance.
Les jauges sont alimentées par des moteurs servo SG90, compatibles avec la plupart des cartes de contrôleur disponibles. Chaque unité comprend un ou deux moteurs servo pré-montés.
L’étalonnage doit être effectué via votre logiciel ou votre firmware.
Lorsque cela est spécifié, nous utilisons des moteurs pas à pas 28BY avec une carte pilote ULN2003.
Les composants électroniques sont disponibles sous forme de paquets complets ou de composants individuels. Lors de la sélection d’une couleur ou d’un type, vous recevrez la quantité spécifiée du produit choisi.
Carte de circuit imprimé seulement : Inclut uniquement la carte de circuit imprimé nue. Vous pouvez commander les composants séparément.
Carte de circuit imprimé + composants électroniques : Inclut une carte de circuit imprimé vierge ainsi que tous les composants nécessaires pour que vous puissiez les souder.
Carte de circuit imprimé soudée : Entièrement soudée et testée par nos soins. Prête à être connectée à votre carte de contrôleur et à être programmée.
