Boeing 737 FMC / CDU

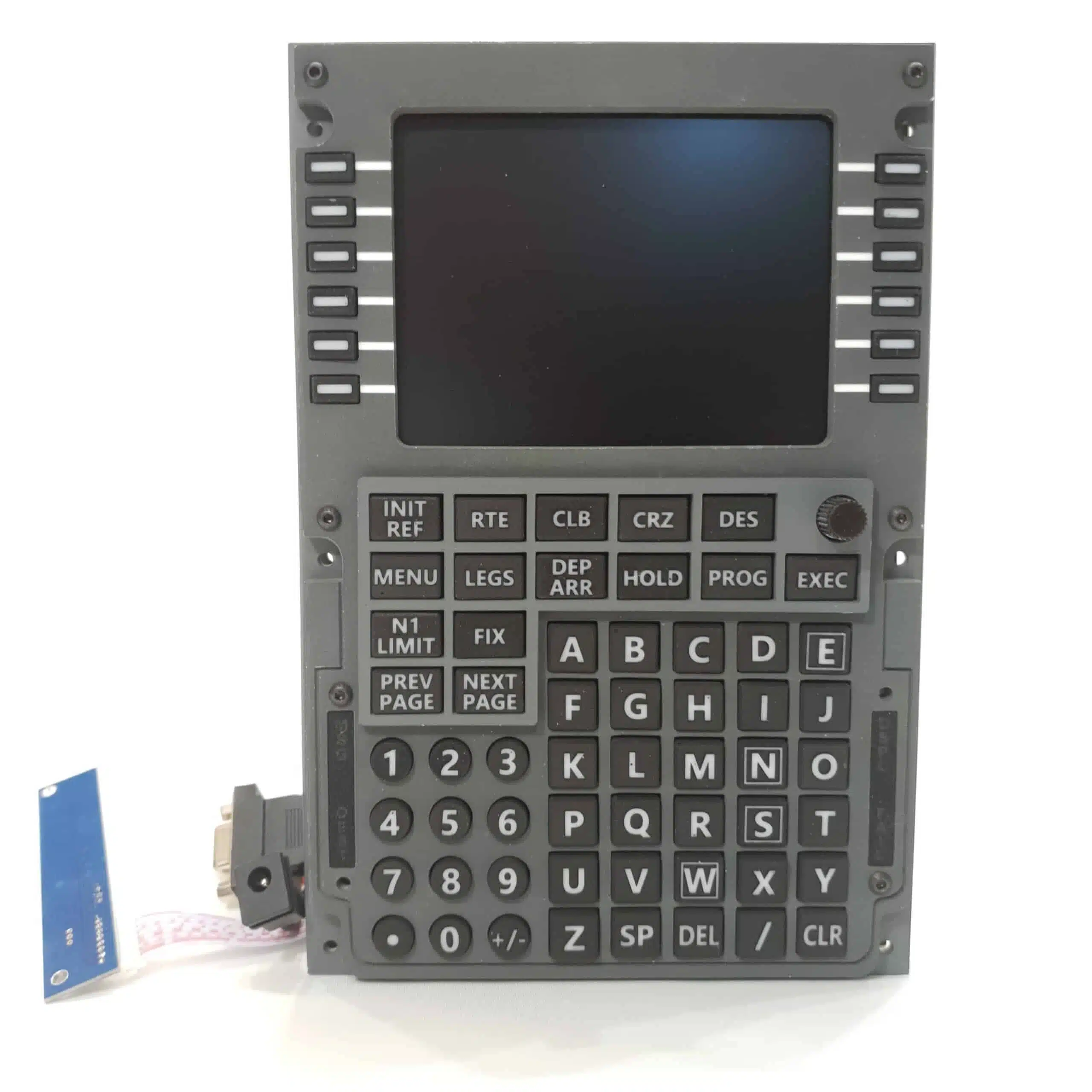

This is a replica of a Boeing 737 FMC panel, consisting of two acrylic sheets. The lower layer is 3mm thick and the upper front is 5mm thick.

The panel is painted in Boeing gray RAL 7011 (iron gray).

All annunciators, annunciator boxes, knobs and buttons are included with the Panel Only Set (knobs and buttons are meant as push buttons and rotary knobs with and without label).

For the C&P and P&P version:

The backlighting of the panel (and buttons) is warm white.

The backlight has a separate connector for 12 volts.

The backside of the PCB features an IDC connector, with each pin assigned to a specific function for the panel.

Installed is a 5 inch display with a VGA / or VIDEO connector, a 12V power supply is included.

The data sheet for the connection of the C&P version is available for download or labelled on the backside of the PCB.

The potentiometer for brightness adjustment of the display is without function.

For the P&P version:

The P&P version comes with an Arduino pre-programmed with your requested FlightSim software, already mounted to the IDC connectors of the PCB. Simply connect it via USB and install the configuration file we provide to get started.

Panel size: 150mm x 225mm
