Additional Information
| Weight | 0,3 kg |
|---|---|
| Dimensions | 8 × 30 × 10 cm |
| Connection Type | Connect and Play, Panel Only, Plug and Play |
Price range: 90,00 € through 300,00 € excluding Tax
| Weight | 0,3 kg |
|---|---|
| Dimensions | 8 × 30 × 10 cm |
| Connection Type | Connect and Play, Panel Only, Plug and Play |
Only logged in customers who have purchased this product may leave a review.

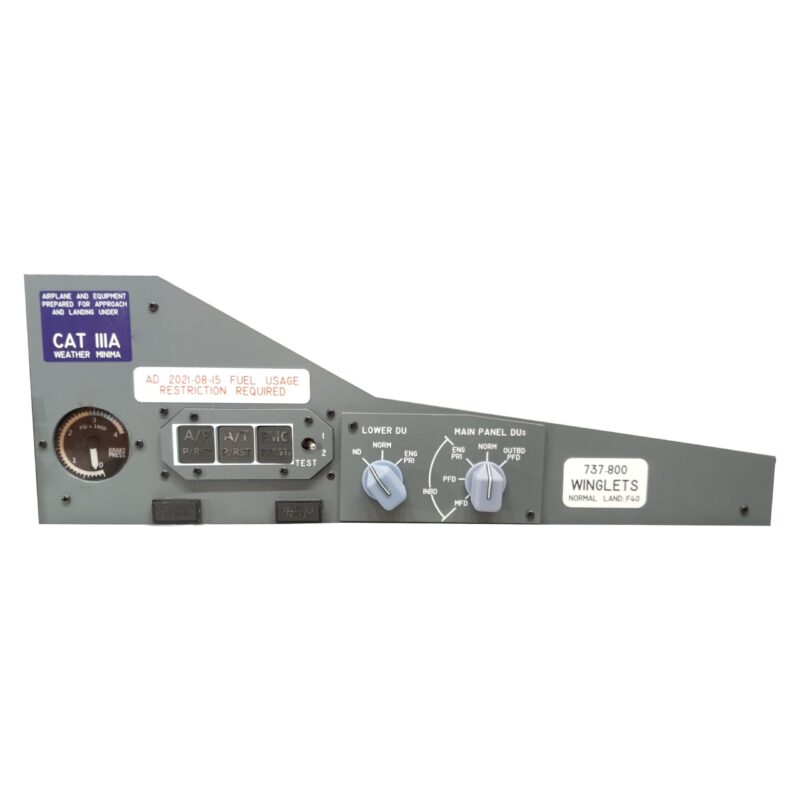

Step into the cockpit with the FO upper Side MIP Boeing 737, a meticulously crafted replica designed especially for flight enthusiasts and commercial flight schools who crave realism in simulation. Made from premium acrylic, this Boeing 737 Panel mimics the exact feel and appearance of the original MIP FO Panel used by professional pilots. Featuring a two-layer construction with a 5mm thick lower layer and a 3mm AFDS upper front layer, every detail is painted in authentic Boeing gray RAL 7011, giving you the unmistakable iron gray finish that enhances immersion.
Why settle for less when you can have all annunciators, annunciator boxes, knobs, and buttons included in the Panel Only Set? These carefully designed controls function as push buttons and rotary knobs, some with and some without labels, allowing you to customize your Flight Simulator experience to match your preferences or training needs. This Aircraft Simulation Panel not only looks the part but also offers practical usability through its included gauge panel.
For those opting for the C&P (Connect and Play) and P&P (Plug and Play) versions, the panel elevates your sim experience with warm white backlighting on both the panel and its buttons. The brake press gauge is integrated with servo-driven functionality and also backlit in warm white, ensuring you never miss key feedback during simulation sessions.
The backside of the Printed Circuit Board (PCB) is fitted with an easy-to-use IDC connector, with each pin precisely assigned to individual panel functions. A detailed data sheet and wiring diagram for the C&P version are available to download or can be found labelled on the PCB, simplifying installation and configuration.
The P&P version takes convenience a notch higher. It includes an Arduino pre-programmed specifically for your FlightSim software preferences, already mounted onto the IDC connectors of the PCB. Simply connect via USB and install the provided configuration file to begin your immersive flight training journey hassle-free. This setup is perfect for flight schools eager to provide hands-on cockpit training without complicated hardware setup.
With a panel size of 433mm x 142.5mm, this Flight Simulator Panel mounts easily into your cockpit setup, replicating the exact scale of the Boeing 737 MIP to complement other aviation replica panels. Every element, from the acrylic construction to buttons and knobs, represents authentic Boeing craftsmanship to ensure your simulation feels as close to flying the real Boeing 737 as possible.
You might wonder if this complex panel could be difficult to install and configure. The truth is, its modular design and clear documentation anticipate and solve such concerns. Comprehensive wiring guides, clear pin mapping, and easy mounting options provide consistency and simplicity. Plus, with our downloadable configuration files and pre-programmed options, you’re supported every step of the way whether you’re a hobbyist or a training provider.
Don’t miss out on adding this premium FO upper Side MIP Boeing 737 panel to your FlightSim arsenal. Whether training future commercial pilots or honing your own flight skills as an enthusiast, this panel delivers precision, immersion, and authentic control feel that sets your simulation apart. Order today and bring the real cockpit dynamics of the Boeing 737 right to your fingertips.
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
Este juego incluye los paneles frontal y posterior, todos los anunciadores, los mandos y los protectores de los interruptores.
Nota: No se incluyen componentes electrónicos. Deberá adquirir interruptores, conmutadores de palanca, interruptores giratorios, codificadores o potenciómetros por separado.
Se trata de una unidad totalmente funcional que debe conectarse a una placa controladora a través de las patillas del conector IDC situado en la parte posterior de la placa de circuito impreso. Se requiere programación.
La información sobre la disposición de los pines está impresa en la placa de circuito impreso o se proporciona en una hoja de datos aparte.
Esta versión viene preprogramada y preparada para USB para utilizarla con su software de simulación de vuelo preferido.
Sólo tiene que conectarla, instalar los archivos de configuración suministrados y ¡listo para volar!
Nota sobre la fuente de alimentación:
Dado que los paneles pueden conectarse en cadena utilizando sus conectores de alimentación, los productos de panel único no incluyen un adaptador de alimentación de 12 V. Sólo se necesita un adaptador para alimentar toda la configuración personalizada de la cabina. La fuente de alimentación se utiliza únicamente para la retroiluminación, no para las funciones principales del producto.
Todos los mandos son componentes de alta calidad impresos en 3D con resina y diseños realistas. Se suministran con un accesorio de eje en D.
Para modificaciones o requisitos personalizados, póngase en contacto con nuestro equipo de asistencia.
Los indicadores funcionan con servomotores SG90, compatibles con la mayorÃa de las tarjetas controladoras disponibles. Cada unidad incluye uno o dos servomotores premontados.
La calibración debe realizarse a través de su software o firmware.
Donde se especifica, utilizamos motores paso a paso 28BY con una placa de controladores ULN2003.
Los productos electrónicos están disponibles en paquetes completos o como componentes individuales. Al seleccionar un color o tipo, recibirá la cantidad especificada del producto elegido.
Sólo PCB: Incluye sólo la PCB desnuda. Puedes pedir los componentes por separado.
PCB + Componentes Electrónicos: Incluye una PCB en blanco más todos los componentes necesarios para que puedas soldar.
PCB soldada: Totalmente soldada y probada por nosotros. Listo para conectar a la placa controladora y el programa.
