Additional Information
| Weight | 0,05 kg |
|---|---|
| Dimensions | 0,2 × 12 × 3 cm |
| PCB Type | PCB + Electric Components, PCB Only, Soldered PCB (Connect and Play) |
| Color | Amber / Yellow, Green, None, Red, White |
Price range: 16,00 € through 45,00 € excluding Tax
| Weight | 0,05 kg |
|---|---|
| Dimensions | 0,2 × 12 × 3 cm |
| PCB Type | PCB + Electric Components, PCB Only, Soldered PCB (Connect and Play) |
| Color | Amber / Yellow, Green, None, Red, White |
Only logged in customers who have purchased this product may leave a review.

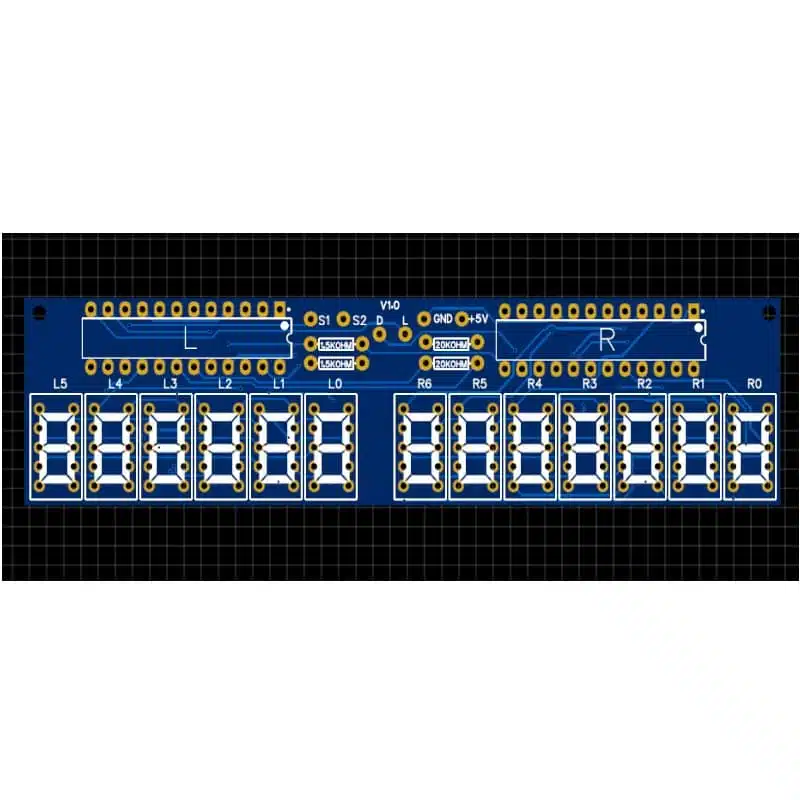

Step up your flight simulation game with the IRS Panel PCB tailored specifically for Boeing 737 enthusiasts and professional flight schools. Designed to perfectly align with cockpitsimparts Boeing 737 panels, this precision-engineered 7 Segment Display Board brings unmatched realism and functionality to your cockpit setup. Whether you’re building from scratch or upgrading your existing simulator, this PCB board is your go-to component for authentic instrument replication.
Measuring a compact 111.2mm x 27.4mm, the IRS Panel PCB effortlessly integrates into your cockpit framework without compromising space. The board’s design optimizes the complex interactions of buttons, switches, LEDs, and segment displays for seamless operation. Choose from three versatile variants to suit your build approach — from the bare essentials to fully tested, soldered, and plug-and-play setups that connect directly via the included multiplexer. Say goodbye to complex wiring headaches and hello to smooth, reliable connections powered by advanced components like the MAX7219 microcontroller and precision resistors.
This isn’t just any PCB board — it’s a multifunction marvel engineered for maximum efficiency and realism:
Worried about installation or compatibility? The IRS Panel PCB’s multiple variants let you select the setup that fits your expertise and timeline—from DIY enthusiasts who love soldering to those seeking convenience with the plug-and-play model. The robust design ensures long-lasting use, and thorough testing accompanies every fully assembled option. Plus, the included documentation and trusted integration with SimVim and Mobiflight ensure you’re not flying blind.
Don’t settle for basic cockpit setups that lack authenticity. Elevate your flight simulation experience with this high-quality, tested, and feature-packed IRS Panel PCB for your Boeing 737 simulator. Whether for hobby or professional training, enhance every detail with a board built to perform. Click to order your IRS Panel PCB today, and bring the sky a little closer to home.
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
Este juego incluye los paneles frontal y posterior, todos los anunciadores, los mandos y los protectores de los interruptores.
Nota: No se incluyen componentes electrónicos. Deberá adquirir interruptores, conmutadores de palanca, interruptores giratorios, codificadores o potenciómetros por separado.
Se trata de una unidad totalmente funcional que debe conectarse a una placa controladora a través de las patillas del conector IDC situado en la parte posterior de la placa de circuito impreso. Se requiere programación.
La información sobre la disposición de los pines está impresa en la placa de circuito impreso o se proporciona en una hoja de datos aparte.
Esta versión viene preprogramada y preparada para USB para utilizarla con su software de simulación de vuelo preferido.
Sólo tiene que conectarla, instalar los archivos de configuración suministrados y ¡listo para volar!
Nota sobre la fuente de alimentación:
Dado que los paneles pueden conectarse en cadena utilizando sus conectores de alimentación, los productos de panel único no incluyen un adaptador de alimentación de 12 V. Sólo se necesita un adaptador para alimentar toda la configuración personalizada de la cabina. La fuente de alimentación se utiliza únicamente para la retroiluminación, no para las funciones principales del producto.
Todos los mandos son componentes de alta calidad impresos en 3D con resina y diseños realistas. Se suministran con un accesorio de eje en D.
Para modificaciones o requisitos personalizados, póngase en contacto con nuestro equipo de asistencia.
Los indicadores funcionan con servomotores SG90, compatibles con la mayorÃa de las tarjetas controladoras disponibles. Cada unidad incluye uno o dos servomotores premontados.
La calibración debe realizarse a través de su software o firmware.
Donde se especifica, utilizamos motores paso a paso 28BY con una placa de controladores ULN2003.
Los productos electrónicos están disponibles en paquetes completos o como componentes individuales. Al seleccionar un color o tipo, recibirá la cantidad especificada del producto elegido.
Sólo PCB: Incluye sólo la PCB desnuda. Puedes pedir los componentes por separado.
PCB + Componentes Electrónicos: Incluye una PCB en blanco más todos los componentes necesarios para que puedas soldar.
PCB soldada: Totalmente soldada y probada por nosotros. Listo para conectar a la placa controladora y el programa.
