LED PCB for Annunciator: Essential Lighting for Flight Enthusiasts and Schools

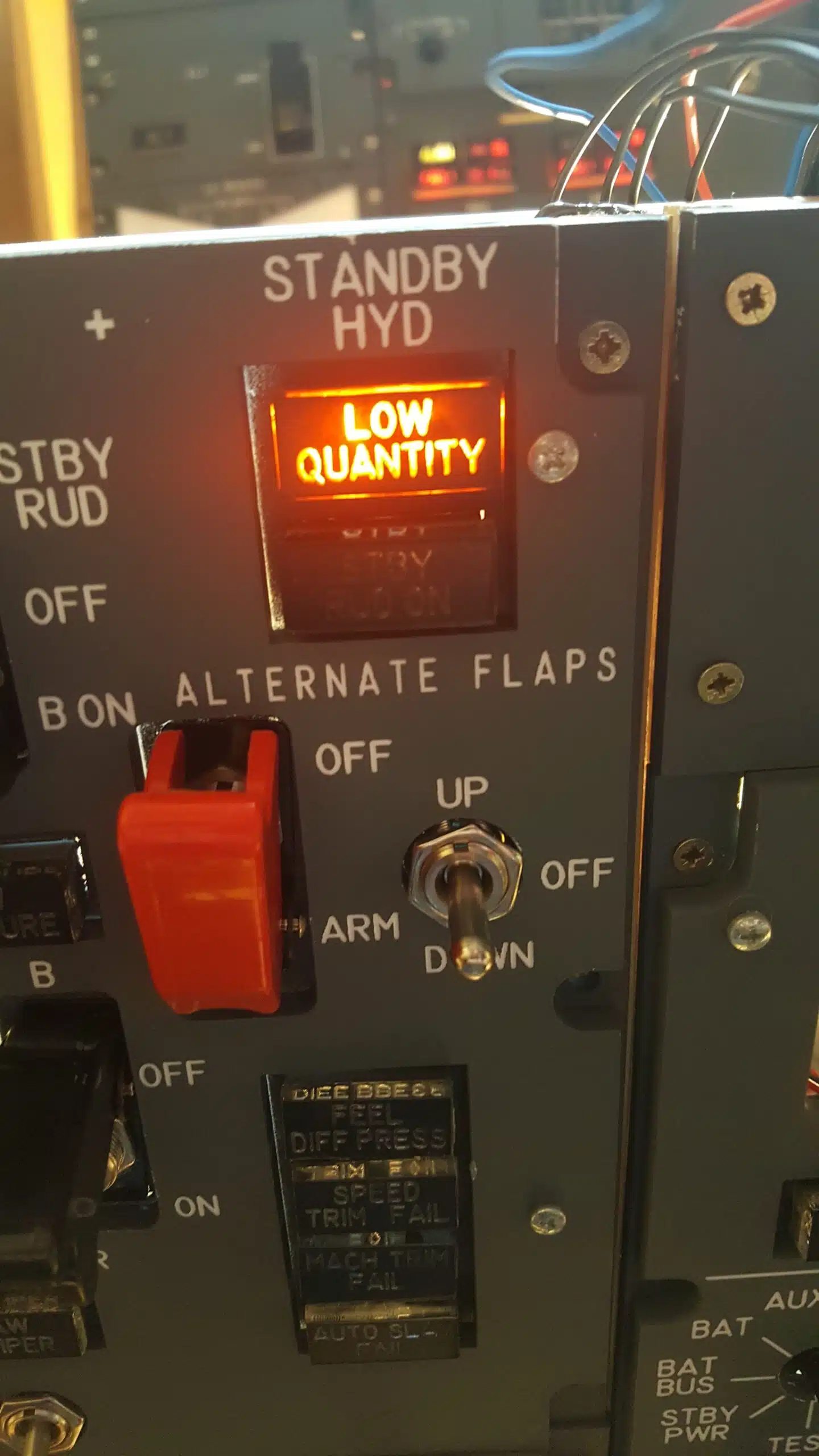

Are you looking to enhance your flight simulation or aircraft panel with reliable, vibrant LED illumination? Our LED PCB for Annunciator is designed specifically for flight enthusiasts and commercial flight schools aiming to bring authentic overhead, pedestal, and MIP lighting setups to life. Featuring robust PCBs equipped with high-quality SMD LEDs and optional 5mm LED bulbs, this LED circuit board ensures outstanding visibility and clear signaling during your flight sessions.

Each package offers a precise blend of LED colors—Orange, Blue, Green, White, and Red—tailored to key cockpit functions such as Ground Proximity indicators and Stab Out Of Trim buttons. The compact PCB dimensions (9mm x 21mm) with a 9mm LED-to-LED spacing make installation seamless even in tight panel spaces. With integrated resistors, these PCBs provide stable current flow to protect your LEDs, translating into longer-lasting and consistent lighting performance.

Why Choose Our LED PCB for Annunciator?

Flight enthusiasts and training schools require dependable, easy-to-install lighting that replicates real cockpit conditions. Our LED Annunciator lighting solutions deliver precisely that by blending authentic colors, compact packages, and durable PCB components.

• Authentic Color Matching: Orange LEDs for Ground Proximity alerts, Red for critical warnings, and Green, Blue, and White for standard annunciations.
• Comprehensive Packages: Overhead, Aft Overhead, MIP, and Pedestal lighting sets ensure you have all necessary LEDs framed into your cockpit panels.
• Flexible Options: SMD LEDs come standard, with optional 5mm LED bulbs for users preferring traditional bulbs.
• Compact & Precise: Small form factor PCBs with exact LED spacing simplify panel integration without sacrificing clarity.
• Built-in Resistors: Protect your LEDs and extend lifespan by regulating current automatically.

Package Details and Components

Overhead Package contains 78 Orange, 17 Blue, and 6 Green LEDs, perfect for main overhead panel annunciations.

Aft Overhead Package includes 15 Orange, 3 Green, and 2 White LEDs for aft lighting needs.

MIP Package integrates 8 Orange LEDs (including Ground Proximity), 5 Red, 5 Green, and 1 Orange Stab Out Of Trim PCB with button—ideal for main instrument panels.

Pedestal Package offers 11 Orange LEDs designed for pedestal lighting with accurate ambiance.

Key Specifications

• PCB Dimensions: 9mm x 21mm
• LED to LED Spacing: 9mm center-to-center
• LED Type: Standard SMD LED; 5mm bulb LEDs optional
• LED Colors: Orange, Blue, Green, White, Red
• Includes resistor for current regulation

Frequently Asked Questions

Q1: Are the LEDs soldered on the PCB?

A1: Yes, the LEDs are pre-installed SMD types. If you prefer 5mm bulb LEDs, they are available as optional components.

Q2: Can I choose individual packages or must I order all?

A2: You can select specific sets to fit your panel needs, including Overhead, Aft Overhead, MIP, or Pedestal packages.

Q3: How durable is this LED PCB under flight school usage?

A3: The PCB and components are designed for robustness with integrated resistors to prolong LED life even in frequent use.

Q4: What kind of maintenance is required?

A4: Minimal maintenance is needed; ensure connectors are secure and avoid physical damage to keep the LEDs functioning properly.

Q5: Are these PCBs compatible with all flight simulation panels?

A5: The compact dimensions and standard LED spacing provide broad compatibility with most cockpit panel designs.

Enhance your flight experience with the bright and reliable LED PCB for Annunciator—perfect for realistic lighting in your cockpit setup. Don’t miss out on clarity and functionality! Order your LED Annunciator PCB package today and take your flight simulations to new heights.
