Additional Information
| Weight | 0,01 kg |
|---|---|
| Dimensions | 2 × 2 × 2 cm |
9998 in stock
2,59 € excluding Tax
| Weight | 0,01 kg |
|---|---|
| Dimensions | 2 × 2 × 2 cm |
Only logged in customers who have purchased this product may leave a review.

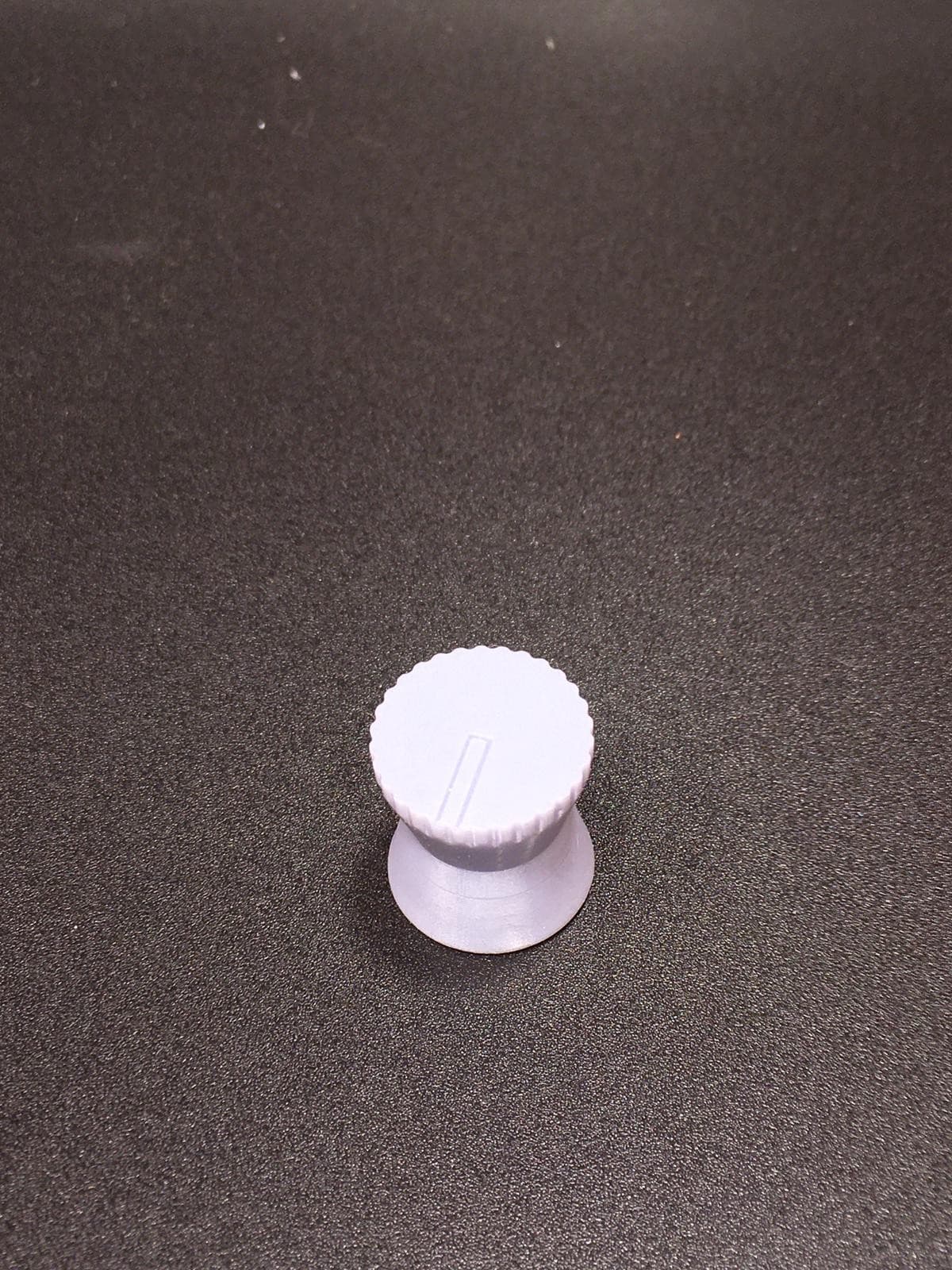

Step into the cockpit experience with this precise Map Chart Knob Boeing 737 replica, designed for flight enthusiasts and commercial flight schools wanting the authentic feel of a Boeing 737. This aviation control knob is not just a simple accessory; it’s a resin 3D printed masterpiece that perfectly mimics the distinct iron gray finish and tactile quality found in real aircraft cockpits. With its 6mm D-Shaped hole, it fits snugly onto encoders, providing smooth, reliable operation and a realistic haptic feedback that brings your flight simulation or training setup alive.
Built using advanced 3D printing technology, this aircraft simulation knob delivers outstanding optical quality and durability. The headless Allen screw included offers an easy mounting option, though we recommend using hot glue to ensure a firm, vibration-proof fit—just like in an actual Boeing 737 cockpit. The iron gray color and carefully crafted shape replicate the exact look and feel of the original, so you can enjoy a highly immersive pilot training experience.

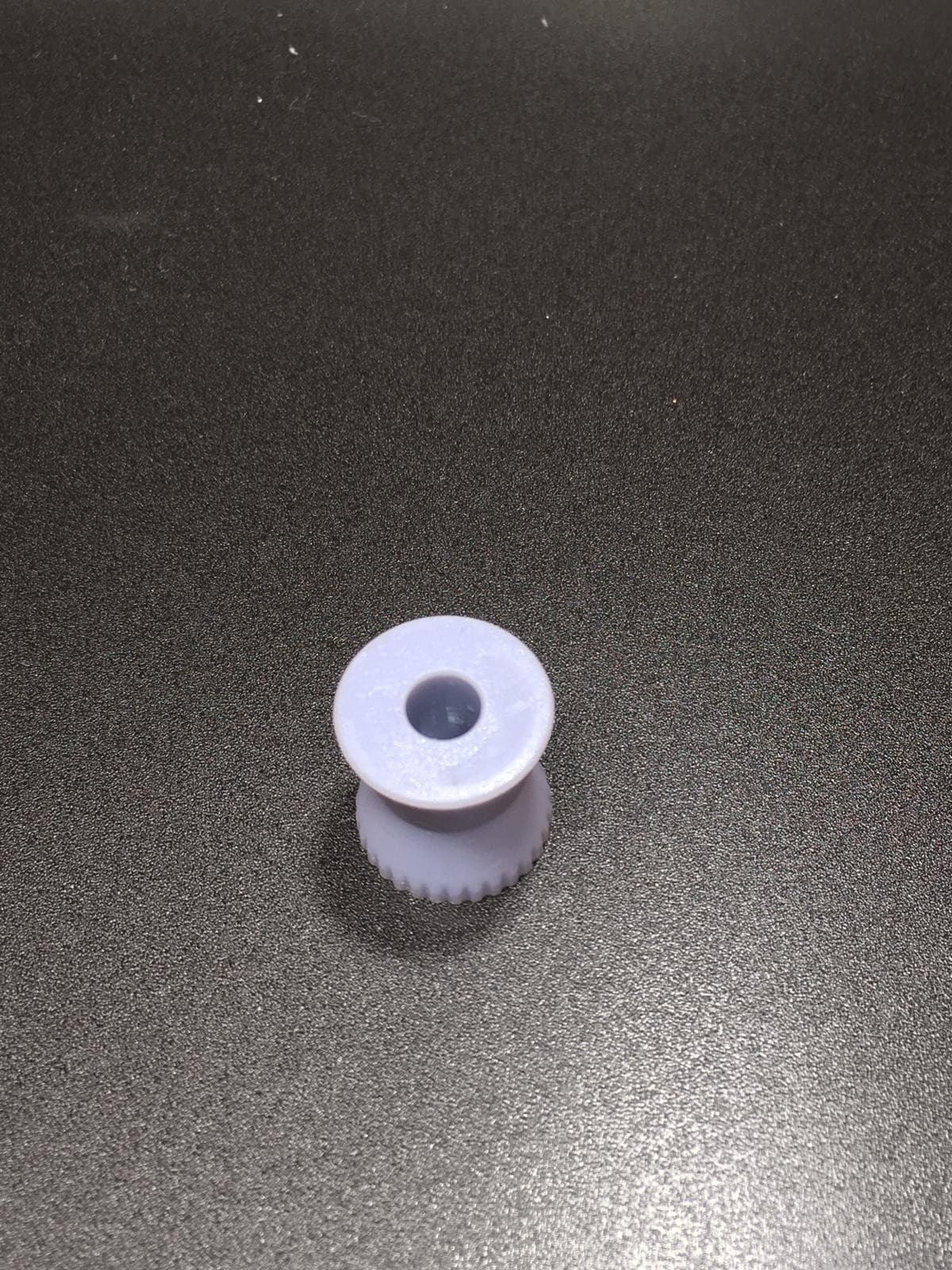

Worried about how to attach the knob securely? While the package includes a headless Allen screw for mounting, applying hot glue is highly recommended for a stronger, vibration-resistant hold. This method ensures your knob won’t loosen in high-usage scenarios typical in flight schools or simulation marathons. Also, thanks to the universal 6mm D-Shaped bore, this knob matches most standard aviation encoders found in Boeing 737 cockpits, making integration seamless.
This pilot training knob doesn’t just enhance your cockpit look—it helps build confidence and precision during simulator sessions or hands-on teaching. Imagine navigating charts and maps like a seasoned pilot, thanks to this finely detailed Boeing 737 replica knob. Train in style, impress instructors and peers, and lift your aviation game to new heights.
Ready to upgrade your flight simulation setup or enhance your classroom cockpit? Order your Map Chart Knob Boeing 737 Replica today—because your training deserves the real deal!
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
Este juego incluye los paneles frontal y posterior, todos los anunciadores, los mandos y los protectores de los interruptores.
Nota: No se incluyen componentes electrónicos. Deberá adquirir interruptores, conmutadores de palanca, interruptores giratorios, codificadores o potenciómetros por separado.
Se trata de una unidad totalmente funcional que debe conectarse a una placa controladora a través de las patillas del conector IDC situado en la parte posterior de la placa de circuito impreso. Se requiere programación.
La información sobre la disposición de los pines está impresa en la placa de circuito impreso o se proporciona en una hoja de datos aparte.
Esta versión viene preprogramada y preparada para USB para utilizarla con su software de simulación de vuelo preferido.
Sólo tiene que conectarla, instalar los archivos de configuración suministrados y ¡listo para volar!
Nota sobre la fuente de alimentación:
Dado que los paneles pueden conectarse en cadena utilizando sus conectores de alimentación, los productos de panel único no incluyen un adaptador de alimentación de 12 V. Sólo se necesita un adaptador para alimentar toda la configuración personalizada de la cabina. La fuente de alimentación se utiliza únicamente para la retroiluminación, no para las funciones principales del producto.
Todos los mandos son componentes de alta calidad impresos en 3D con resina y diseños realistas. Se suministran con un accesorio de eje en D.
Para modificaciones o requisitos personalizados, póngase en contacto con nuestro equipo de asistencia.
Los indicadores funcionan con servomotores SG90, compatibles con la mayorÃa de las tarjetas controladoras disponibles. Cada unidad incluye uno o dos servomotores premontados.
La calibración debe realizarse a través de su software o firmware.
Donde se especifica, utilizamos motores paso a paso 28BY con una placa de controladores ULN2003.
Los productos electrónicos están disponibles en paquetes completos o como componentes individuales. Al seleccionar un color o tipo, recibirá la cantidad especificada del producto elegido.
Sólo PCB: Incluye sólo la PCB desnuda. Puedes pedir los componentes por separado.
PCB + Componentes Electrónicos: Incluye una PCB en blanco más todos los componentes necesarios para que puedas soldar.
PCB soldada: Totalmente soldada y probada por nosotros. Listo para conectar a la placa controladora y el programa.
