General Product informations

50 in stock

15,00  excluding Tax

Estimated delivery dates: Oct 20, 2025 - Oct 29, 2025

Additional Information

Weight 0,1 kg
Dimensions 5 × 10 × 2 cm

Reviews

There are no reviews yet

Only logged in customers who have purchased this product may leave a review.

SKU: 5100011

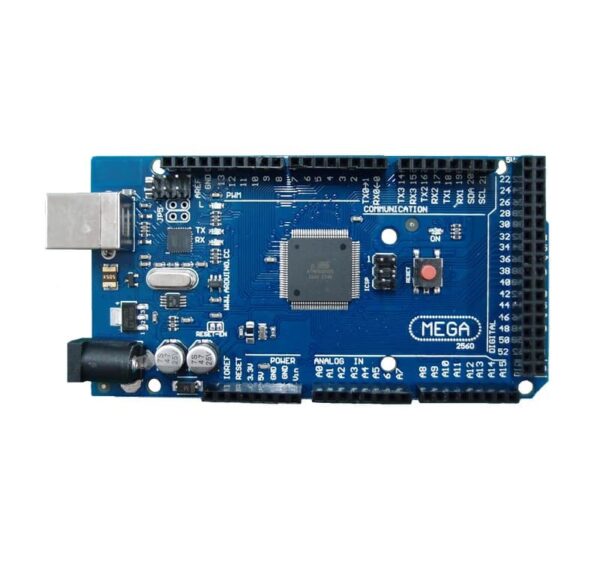

Mega 2560 Board: The Perfect Microcontroller for Flight Enthusiasts and Schools

If you’re passionate about flight or training in commercial flight schools, the Mega 2560 Board is a game-changer. This Mega2560 microcontroller board packs powerful features to handle complex projects with ease—perfect for developing flight simulators, data logging systems, or robotics applications related to aviation. With 54 digital I/O pins, 16 analog inputs, plus 4 serial communication ports, it offers unmatched flexibility for connecting all your sensors, actuators, and panels.

Imagine building a detailed flight cockpit interface that requires multiple controls and real-time data streaming. The ATmega2560 Board operates at 16 MHz, equipped with 256 KB Flash memory, 8 KB SRAM, and 4 KB EEPROM, allowing your complex code, sensor data, and control commands to execute flawlessly. Thanks to plug-and-play panel compatibility and Arduino IDE support, setting up and programming your system is a breeze—even if you’re new to microcontrollers.

Why Flight Enthusiasts and Flight Schools Love the Mega 2560 Board

The Mega2560 is more than just a microcontroller; it’s a complete digital and analog solution that makes developing and managing flight-related electronics hassle-free. Need precise PWM outputs for motor control or servo management? The board offers 15 PWM pins. Looking to implement robust serial communication to interface with GPS modules or telemetry devices? It features 4 UART ports, ideal for simultaneous data exchange.

Powering options include USB and external supply, ensuring your flight simulation setups or training rigs stay reliable and uninterrupted. Plus, the USB cable comes included—saving you time and additional purchases.

Key Benefits Tailored for Flight Applications

  • Expandability: 54 digital and 16 analog ports easily handle multiple flight sensors and control panels.
  • Robust Communication: 4 serial ports for seamless data flow with telemetry, GPS, and other systems.
  • Plug and Play: Comes with panel solutions preconfigured, speeding up your setup process.
  • Memory and Speed: 256 KB Flash and 16 MHz clock speed empower complex simulations and data logging.
  • Power Flexibility: USB power or external supply to suit cockpit or classroom environments.
  • Arduino IDE Compatible: Use familiar software and skills to code and customize your flight projects.

From 3D Printers to Flight Simulators – Versatility You Can Trust

The Mega 2560 Board’s reputation extends across robotics, 3D printer control, and sophisticated data logging systems. For flight enthusiasts and commercial flight schools, it means you can rely on a tested, advanced Arduino-compatible board for everything from sensor integration to actuator control. Whether you’re simulating cockpit panels or building training models, this board handles the complexity that flight projects demand.

Don’t let limited hardware hold back your aviation creativity and training efficiency. Embrace the power of the Mega2560 and its extensive digital and analog ports, serial communication capabilities, PWM outputs, and ample memory. The included USB cable and plug-and-play panel solutions make it a no-hassle choice.

Common Questions Flight Enthusiasts Ask About the Mega2560 Board

1. Can the Mega 2560 manage multiple flight sensors and instruments simultaneously?

Absolutely. With 54 digital pins and 16 analog inputs, it’s designed to handle diverse sensors and actuators efficiently.

2. What kind of power supply works best in a flight simulation environment?

Both USB power and external power supply options are available, making the board adaptable to various setups.

3. Is programming difficult for those new to Arduino IDE?

Not at all. The board is fully compatible with the Arduino IDE and comes with plug-and-play solutions that simplify programming.

4. How does the Mega 2560 handle data logging for flight training?

Its large Flash memory and multiple serial ports support complex data collection and real-time communication required in flight training.

5. Are cables and extras included?

Yes, a USB cable is included to get you started right away with no extra purchases needed.

Take your flight projects to the next level with the Mega 2560 Board—engineered for aerospace passion and professional training alike. Order now and power your aviation innovations with a trusted Arduino development board that listens to your needs.

Related Products

Panel Only

This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.

Connect and Play

This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.

Plug and Play

This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!

Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.

Knobs

All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.

Gauges

The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.

Calibration must be done via your software or firmware.

Where specified, we use 28BY stepper motors with a ULN2003 driver board.

Electronics

Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.

PCBs

PCB Only: Includes just the bare PCB. You can order components separately.

PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.

Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
