Additional Information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 30 × 20 cm |
| Connection Type | Panel Only, Connect and Play, Plug and Play, Connect and Play with Lever, Plug and Play with Lever |
Price range: 600,00 € through 2000,00 € excluding Tax
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 30 × 20 cm |
| Connection Type | Panel Only, Connect and Play, Plug and Play, Connect and Play with Lever, Plug and Play with Lever |
Only logged in customers who have purchased this product may leave a review.

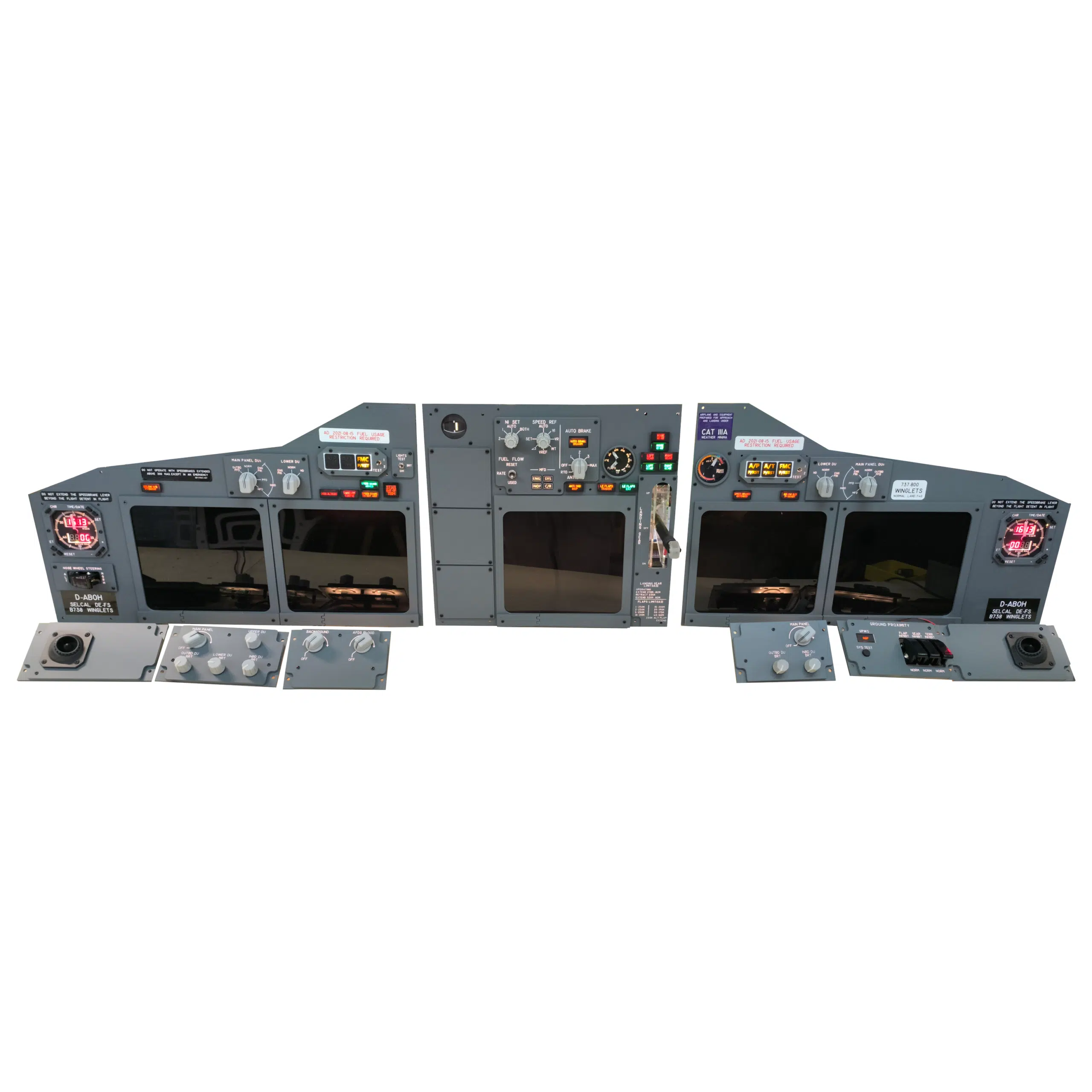

Step into the world of authentic flying with the Simbay Boeing 737 Main Instrument Panel, a meticulously crafted Boeing 737 Simulator MIP that’s designed for both flight enthusiasts and commercial flight schools. This Replica Cockpit Flight Simulator Panel is made from two layers of high-quality acrylic—5mm thick lower layer and 3mm thick front upper layer—with a sleek Boeing Gray (RAL 7011, Iron Gray) finish that mirrors the real Boeing 737 cockpit.
Imagine the thrill of controlling a flight deck interface that replicates every detail, from push buttons and rotary knobs, to decals and annunciators, all laid out precisely as in the actual aircraft. This Acrylic Panel Set includes every component: gauges like chronos, yaw damper, flaps, brake pressure, and even the dimmed display front glasses, giving you a rich, tactile experience. Whether you’re training for commercial piloting or enjoying immersive flight simulation, this aircraft panel kit delivers unmatched realism.
It’s not just a panel—it’s your gateway to a true-to-life flying experience. The panel’s backlighting uses warm white LEDs, enhancing visibility and cockpit immersion during night flights. The chronos gauge boasts a warm white backlit, stepper-driven mechanism with striking red 7-segment displays, while the flaps, brake pressure gauge, and yaw damper feature smooth servo-driven motion for an authentic feel. Each PCB on the backside includes an IDC connector assigned to every function in the panel, making setup and troubleshooting easy.
Designed for modern FlightSim software like X-Plane, FS2020 (including popular add-ons like PMDG 737 and Zibo 737), the P&P (Plug & Play) version comes fully pre-programmed with Arduinos installed on board. Simply connect via USB, install the included configuration files, and your simulator control panel is ready to operate—no extra coding required! This ensures you stay focused on your training or simulation without tech hassles.
Whether you’re upgrading your home simulator or outfitting a training classroom, the Simbay Boeing 737 Main Instrument Panel is designed to inspire. Its robust construction and genuine functionality provide the tactile feedback and accuracy essential to mastering flight controls. The warm white backlighting and realistic gauge movement will make you feel as if you’re truly in the right seat of a Boeing airliner.
Keep in mind: monitors and the landing gear lever are not included with the panel and should be sourced separately. The Conversion & Panel (C&P) and Plug & Play (P&P) versions cater to different tech skill levels, giving you options for setup complexity and software integration. Detailed connection datasheets are provided for the C&P version to simplify wiring and customization.
Bring your virtual cockpit to life with the Simbay Boeing 737 MIP. Rig it up with confidence, enjoy seamless software compatibility, and immerse yourself in the thrill of a true replication of Boeing’s renowned flight deck interface. Don’t settle for less when it comes to your simulator. Elevate your setup with this aircraft gauge replica and flight simulator accessories that are designed to push your flying experience beyond the screen.
Ready to take off? Get your Simbay Boeing 737 Main Instrument Panel now and transform your flight simulator into a fully immersive, professional-grade cockpit!
Yes! The P&P version is fully compatible with FS2020, including popular add-ons like PMDG 737 and Zibo 737.
The panel and buttons use warm white LEDs for backlighting, providing a realistic look and easy readability in low-light conditions.
No, the P&P version comes with pre-programmed Arduinos for plug & play functionality via USB.
The gauges such as chronos, yaw damper, flaps, and brake pressure are servo or stepper motor driven, providing real movement for an authentic experience.
No, the landing gear lever is optional and must be purchased and installed separately.
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
Cet ensemble comprend les panneaux avant et arrière, tous les voyants, boutons et protections de commutateur.
Remarque : aucun composant électronique n’est inclus. Vous devrez acheter séparément les commutateurs, les commutateurs à bascule, les commutateurs rotatifs, les encodeurs ou les potentiomètres.
Il s’agit d’une unité entièrement fonctionnelle qui doit être connectée via les broches du connecteur IDC à l’arrière du circuit imprimé à une carte de contrôleur. Une programmation est nécessaire.
L’agencement des broches est soit imprimé sur le circuit imprimé, soit fourni dans une fiche technique séparée.
Cette version est pré-programmée et prête pour l’USB pour une utilisation avec le logiciel de simulation de vol de votre choix.
Il suffit de le brancher, d’installer les fichiers de configuration fournis et vous êtes prêt à voler !
Remarque sur l’alimentation électrique :
Comme les panneaux peuvent être chaînés en utilisant leurs connecteurs d’alimentation, les produits à panneau unique n’incluent pas d’adaptateur secteur 12V. Un seul adaptateur est nécessaire pour alimenter l’ensemble de votre installation de cockpit personnalisée. L’alimentation électrique est utilisée uniquement pour l’éclairage de fond, pas pour les fonctions de base du produit.
Tous les boutons sont des composants 3D imprimés en résine de haute qualité avec des conceptions réalistes. Ils sont fournis avec un adaptateur en forme de D.
Pour les modifications ou les exigences personnalisées, veuillez contacter notre équipe d’assistance.
Les jauges sont alimentées par des moteurs servo SG90, compatibles avec la plupart des cartes de contrôleur disponibles. Chaque unité comprend un ou deux moteurs servo pré-montés.
L’étalonnage doit être effectué via votre logiciel ou votre firmware.
Lorsque cela est spécifié, nous utilisons des moteurs pas à pas 28BY avec une carte pilote ULN2003.
Les composants électroniques sont disponibles sous forme de paquets complets ou de composants individuels. Lors de la sélection d’une couleur ou d’un type, vous recevrez la quantité spécifiée du produit choisi.
Carte de circuit imprimé seulement : Inclut uniquement la carte de circuit imprimé nue. Vous pouvez commander les composants séparément.
Carte de circuit imprimé + composants électroniques : Inclut une carte de circuit imprimé vierge ainsi que tous les composants nécessaires pour que vous puissiez les souder.
Carte de circuit imprimé soudée : Entièrement soudée et testée par nos soins. Prête à être connectée à votre carte de contrôleur et à être programmée.
