Additional Information
Weight | 0,2 kg |
---|---|
Dimensions | 7 × 16 × 4 cm |
Connection Type | Connect and Play, Panel Only, Plug and Play |
170,00 € excluding Tax
Weight | 0,2 kg |
---|---|
Dimensions | 7 × 16 × 4 cm |
Connection Type | Connect and Play, Panel Only, Plug and Play |
Only logged in customers who have purchased this product may leave a review.

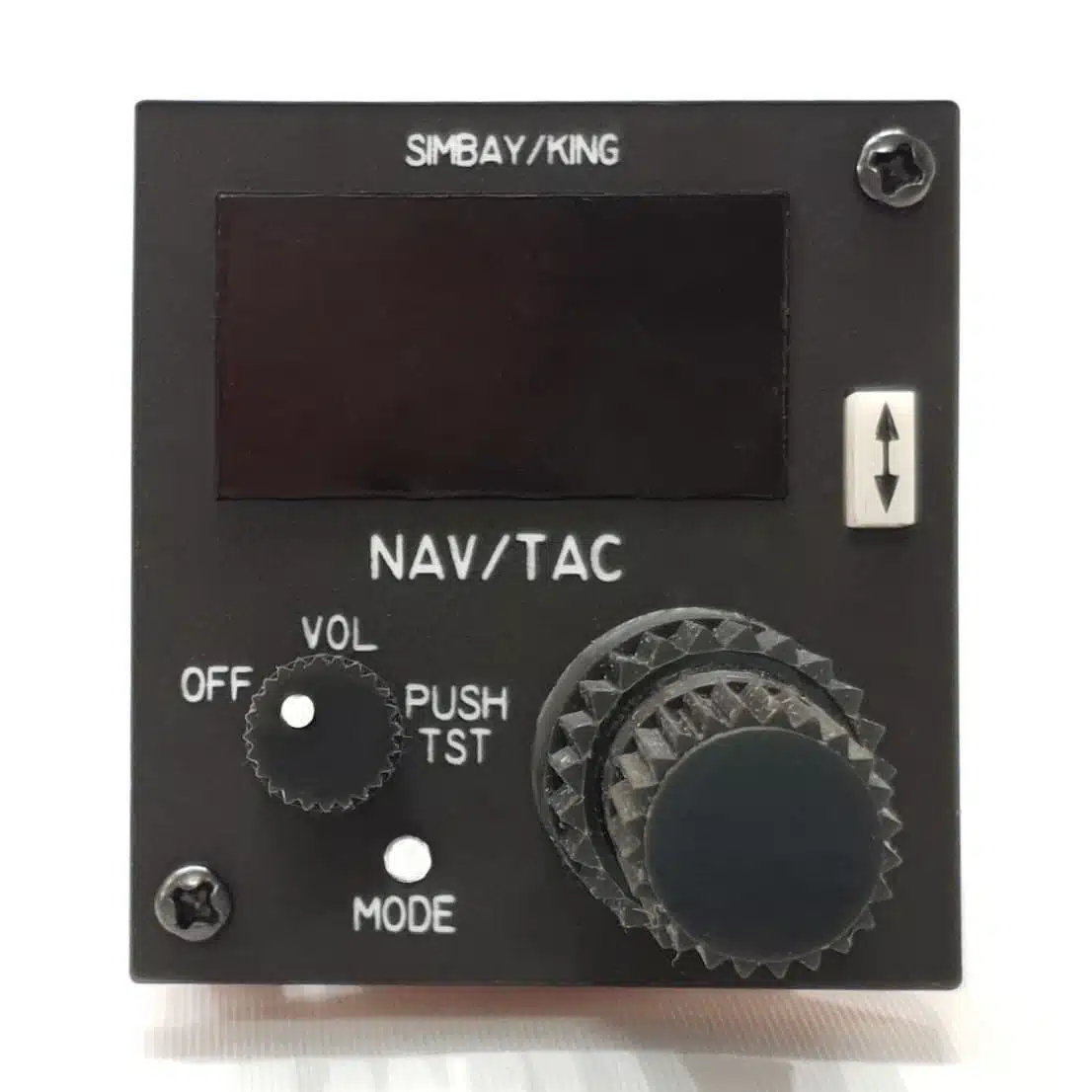

For flight enthusiasts and commercial flight schools looking to elevate their simulation experience, the Simbay KFS NAV/TAC panel offers a perfectly crafted Replica Bendix KFS NAV/TAC suited for home cockpits. Painted in a sleek matte black finish, this compact panel (sized 53mm x 57mm) delivers authentic visual appeal and functional precision that make flight simulation feel more real than ever.
From the moment you power it up, the warm white backlighting creates a comfortable and realistic cockpit ambiance, while the vibrant red 7 segment displays provide sharp, easy-to-read navigation and TAC data. The backlight is powered by a dedicated 12V connector, allowing straightforward integration with your existing home cockpit setup without extra fuss.
Functionality meets user-friendliness with the included potentiometer that smoothly adjusts settings without the interruption of an “Off” clicking position, giving you seamless control during flight simulations. The PCB on the back features an IDC connector where every pin corresponds to a specific function of the panel, enabling fast, reliable connectivity and simplifying installation.
Whether you’re training students at a commercial flight school or simply passionate about building an immersive home cockpit, the Simbay KFS NAV/TAC panel stands out as an essential Flight Simulator Component. Its accuracy and careful attention to detail mirror that of an original Bendix Cockpit Instrument, crafting a flight navigation panel experience rich with authenticity.
Its precise replication of the Bendix KFS NAV/TAC, compact size, and user-friendly connectors make it ideal for enhancing the realism and functionality of home flight simulators.
The warm white backlighting illuminates the panel and buttons via a dedicated 12V connector, delivering consistent brightness without glare during your flights.
The potentiometer allows smooth adjustments but intentionally does not click into an “Off” position, meaning it won’t inadvertently cut power during use.
Yes, the PCB’s IDC connector has each pin assigned to a specific function, and a detailed connection data sheet is available for download or on the panel’s PCB backside.
The panel features red-colored 7 segment displays that offer vivid, easy-to-read data essential for navigation and TAC indications.
Get your hands on the Simbay KFS NAV/TAC Replica Bendix Panel today and take your flight simulation experience to new heights with unmatched authenticity and ease of integration. Don’t just simulate flying — live the cockpit environment at home!
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
