Simbay KR87 ADF Replica for Home Cockpits – Realistic Bendix Experience

Unlock the authentic feel of a professional flight deck with the Simbay KR87 ADF, a top-tier Automatic Direction Finder replica designed specifically for flight enthusiasts and commercial flight schools. This Bendix ADF simulator model replicates the real instrument’s look and function, making it an indispensable addition to your home cockpit setup.

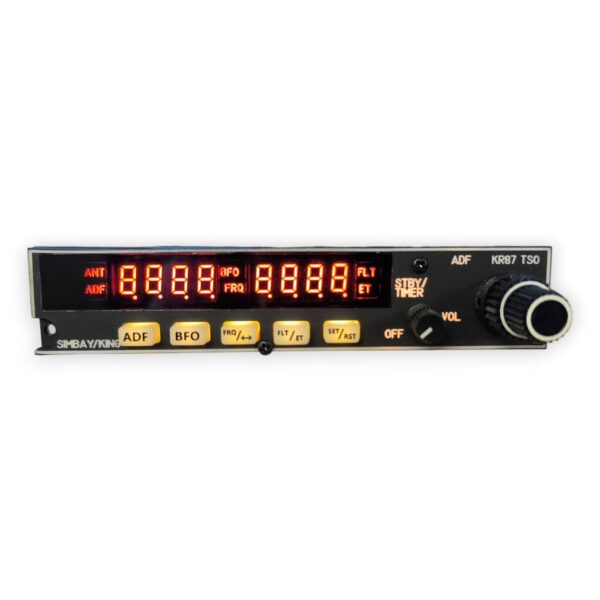

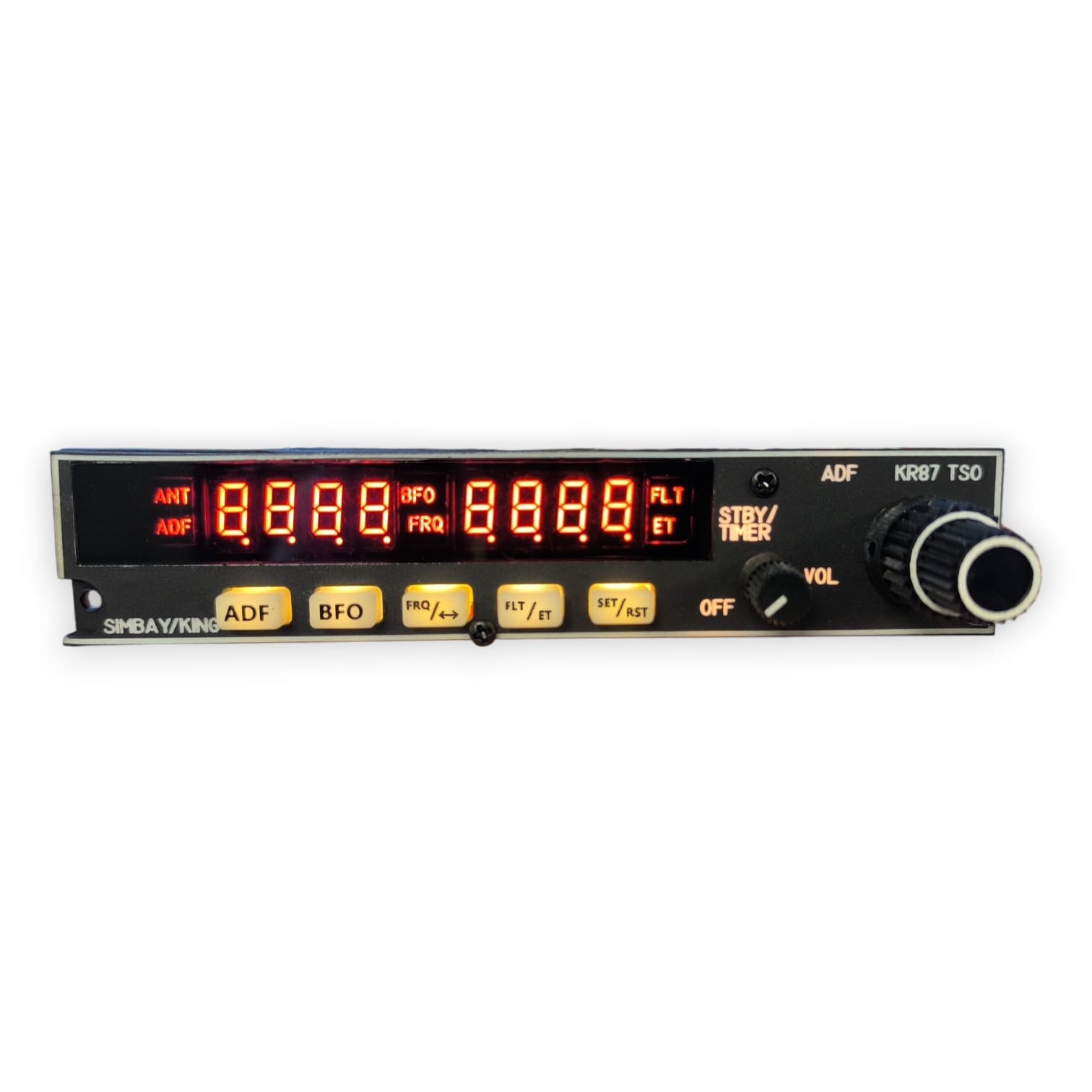

Crafted to impress, the Simbay KR87 features a sleek matte black panel that reduces reflections for a professional appearance. Its warm white backlighting bathes the panel and buttons in an inviting glow, perfectly mimicking the original instrument’s lighting environment during night flights. The separate 12 volts backlight connector gives you independent control, allowing you to easily integrate it into your cockpit’s electrical system.

Why Choose the Simbay KR87 ADF for Your Home Cockpit?

• Realistic Red Seven Segment Displays: The crisp red segment displays bring the instrument alive, enhancing readability and realism.
• Non-Detent Potentiometer: Offers smooth, continuous rotation without the click into the “Off” position, replicating real operational feel.
• Easy Integration with IDC Connector: The backside of the PCB includes a well-labelled IDC connector with dedicated pins for each function, making wiring straightforward and foolproof.
• Complete Data Sheet Available: Comprehensive connection and function documentation ensures you know exactly how to set up and maximize your simulator’s performance.
• Optimal Size and Design: Measuring 165mm by 34mm, the panel fits seamlessly into most home cockpits, blending aesthetic appeal with functionality.

Built for Passionate Flight Enthusiasts and Training Professionals

For flight enthusiasts eager to build or upgrade a home cockpit, the Simbay KR87 ADF offers the perfect balance of authenticity and ease of use. Commercial flight schools can rely on this replica to provide students with hands-on experience in reading and interpreting ADF instruments, enhancing their real-world navigation skills before stepping into actual aircraft.

Designed with authority and backed by precise engineering, this Bendix ADF simulator replicates essential functions without overwhelming complexity, ensuring smooth, consistent operation in any simulated flight environment.

Features That Make the Simbay KR87 ADF Stand Out

• Matte Black Panel finish for an anti-glare, professional look
• Warm white backlighting with a dedicated 12-volt connector for ambient lighting control
• Red seven-segment digital displays for clear and accurate frequency readouts
• Non-detent rotary potentiometer simulating real ADF tuning ergonomics
• Secure IDC connector on PCB backside with straightforward pin assignments for each control and display function
• Concise and accessible datasheet delivering precise connection, function details, and installation guidance

Installing the Simbay KR87 ADF into your cockpit is simple and rewarding. Thanks to its size and mounting design, it fits into standard cockpits without modification. The accessible IDC connector and thorough datasheet minimize setup errors and downtime—allowing you to focus on your flight simulation experience.

Whether refining your navigation skills or building your dream cockpit, the Simbay KR87 ADF replica is your trusted companion. It brings the professional world of Bendix instrumentation into your home with style and fidelity.

Frequently Asked Questions (FAQ)

What type of backlighting does the Simbay KR87 ADF use?

The panel and buttons utilize warm white backlighting with a separate 12 volts connector to control illumination independently from the main unit.

Is the potentiometer functional like the original Bendix KR87?

The potentiometer is non-detent, meaning it turns smoothly without clicking into an “Off” position, closely mimicking the real instrument’s operation.

How do I connect the panel to my home cockpit system?

The backside PCB features an IDC connector with each pin clearly assigned to specific panel functions. The provided datasheet includes detailed wiring instructions for easy installation.

What are the dimensions of the Simbay KR87 ADF panel?

The panel size is 165mm wide by 34mm tall, allowing it to fit most home cockpit configurations flawlessly.

Can this panel be used for commercial flight training?

Yes, the Simbay KR87 ADF replica is built with high fidelity and durability, making it suitable for both serious flight enthusiasts and commercial flight schools aiming to provide realistic navigation training.

Ready to elevate your flight simulation setup with a realistic Bendix KR87 ADF replica? The Simbay KR87 offers unmatched build quality, authentic functions, and easy integration — add it to your home cockpit today and experience the thrill of professional-grade flying.
