Additional Information
| Weight | 0,3 kg |
|---|---|
| Dimensions | 7 × 18 × 16 cm |
| Connection Type | Connect and Play, Panel Only, Plug and Play |
Price range: 50,00 € through 190,00 € excluding Tax
| Weight | 0,3 kg |
|---|---|
| Dimensions | 7 × 18 × 16 cm |
| Connection Type | Connect and Play, Panel Only, Plug and Play |
Only logged in customers who have purchased this product may leave a review.

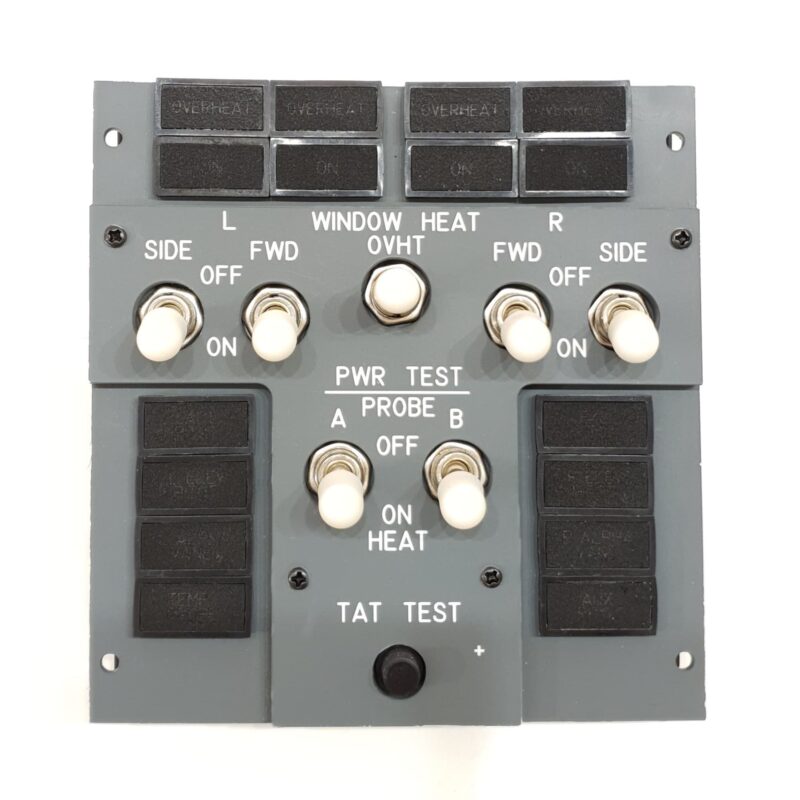

If you’re passionate about flight simulation or training in commercial aviation, the Simbay Window Heat Panel is engineered to bring you a true-to-life experience. This overhead panel replicates the Boeing 737’s window heat control system, enhancing your cockpit simulation or training environment with exceptional realism. Crafted from high-quality acrylic sheets and painted in Boeing’s iron gray RAL 7011, this panel is not just an accessory—it’s a must-have for serious flight enthusiasts and commercial flight schools.
The Window Heat Panel consists of two acrylic layers— a sturdy 5mm thick upper front sheet and a durable 3mm thick lower layer. The iron gray RAL paint perfectly matches Boeing’s iconic gray, giving it an authentic color finish that blends seamlessly with your Boeing 737 replica flight simulator panel setup.
Designed for convenience and professional simulation, this panel includes all annunciators, annunciator boxes, push buttons, rotary knobs with and without labels, providing you with everything needed for a fully functional flight control panel. The knobs and buttons are designed to mimic the genuine push-button and rotary knob actions of the original aircraft, enhancing tactile feedback and operational realism.
For the Control & Push (C&P) and Push & Push (P&P) versions, the panel features warm white backlighting that illuminates both the panel and buttons, ensuring clear visibility in low-light conditions. This backlighting comes with a separate 12 volts connector, making installation and integration with your simulation setup straightforward.
On the backside, you’ll find a printed circuit board (PCB) featuring an IDC connector where each pin is assigned a specific function, enabling precise and organized connections to your simulation control systems. A detailed datasheet is provided for easy wiring and setup, either downloaded or labeled directly on the PCB’s backside.
The panel measures 146mm by 152mm (mm size), a compact and practical dimension that fits smoothly into your Boeing 737 overhead panel replica configuration without sacrificing detail or usability.
Worried about complicated installation? Simbay makes it simple with clearly labelled connectors and downloadable wiring data sheets, so you don’t have to guess or fiddle with unknown wiring. Are you seeking robust durability without sacrificing authenticity? The iron gray painted acrylic sheets provide both a sturdy and visually accurate panel, ensuring it withstands intensive use while maintaining your cockpit’s aesthetic appeal.
Whether you’re upgrading your flight control panel or building a Boeing 737 overhead panel from scratch, the Window Heat Panel delivers consistent quality and the immersive experience you desire.
Don’t settle for generic or low-quality parts. Elevate your simulator’s realism with the Simbay Window Heat Panel, specifically designed to perfectly complement Boeing 737 replicas. Experience the thrill of flying with a control panel that feels truly professional. Get yours now and transform your simulation setup with unmatched style and functionality!
This set includes the front and back panels, all annunciators, knobs, and switch guards.
Note: No electronic components are included. You will need to purchase switches, toggle switches, rotary switches, encoders, or potentiometers separately.
This is a fully functional unit that must be connected via the IDC connector pins on the back of the PCB to a controller board. Programming is required.
Pin layout information is either printed on the PCB or provided in a separate datasheet.
This version comes pre-programmed and USB-ready for use with your preferred flight simulation software.
Simply plug it in, install the provided configuration files, and you’re ready to fly!
Power Supply Note:
Because the panels can be daisy-chained using their power connectors, single-panel products do not include a 12V power adapter. Only one adapter is required to power your entire custom cockpit setup. The power supply is used solely for the backlighting, not for the product’s core functions.
All knobs are high-quality, resin 3D-printed components with realistic designs. They are supplied with a D-shaft fitting.
For modifications or custom requirements, please contact our support team.
The gauges are powered by SG90 servo motors, compatible with most available controller boards. Each unit includes one or two pre-mounted servo motors.
Calibration must be done via your software or firmware.
Where specified, we use 28BY stepper motors with a ULN2003 driver board.
Electronics are available as complete packages or individual components. When selecting a color or type, you will receive the specified quantity of the chosen product.
PCB Only: Includes just the bare PCB. You can order components separately.
PCB + Electronic Components: Includes a blank PCB plus all necessary components for you to solder.
Soldered PCB: Fully soldered and tested by us. Ready to connect to your controller board and program.
Este juego incluye los paneles frontal y posterior, todos los anunciadores, los mandos y los protectores de los interruptores.
Nota: No se incluyen componentes electrónicos. Deberá adquirir interruptores, conmutadores de palanca, interruptores giratorios, codificadores o potenciómetros por separado.
Se trata de una unidad totalmente funcional que debe conectarse a una placa controladora a través de las patillas del conector IDC situado en la parte posterior de la placa de circuito impreso. Se requiere programación.
La información sobre la disposición de los pines está impresa en la placa de circuito impreso o se proporciona en una hoja de datos aparte.
Esta versión viene preprogramada y preparada para USB para utilizarla con su software de simulación de vuelo preferido.
Sólo tiene que conectarla, instalar los archivos de configuración suministrados y ¡listo para volar!
Nota sobre la fuente de alimentación:
Dado que los paneles pueden conectarse en cadena utilizando sus conectores de alimentación, los productos de panel único no incluyen un adaptador de alimentación de 12 V. Sólo se necesita un adaptador para alimentar toda la configuración personalizada de la cabina. La fuente de alimentación se utiliza únicamente para la retroiluminación, no para las funciones principales del producto.
Todos los mandos son componentes de alta calidad impresos en 3D con resina y diseños realistas. Se suministran con un accesorio de eje en D.
Para modificaciones o requisitos personalizados, póngase en contacto con nuestro equipo de asistencia.
Los indicadores funcionan con servomotores SG90, compatibles con la mayorÃa de las tarjetas controladoras disponibles. Cada unidad incluye uno o dos servomotores premontados.
La calibración debe realizarse a través de su software o firmware.
Donde se especifica, utilizamos motores paso a paso 28BY con una placa de controladores ULN2003.
Los productos electrónicos están disponibles en paquetes completos o como componentes individuales. Al seleccionar un color o tipo, recibirá la cantidad especificada del producto elegido.
Sólo PCB: Incluye sólo la PCB desnuda. Puedes pedir los componentes por separado.
PCB + Componentes Electrónicos: Incluye una PCB en blanco más todos los componentes necesarios para que puedas soldar.
PCB soldada: Totalmente soldada y probada por nosotros. Listo para conectar a la placa controladora y el programa.
