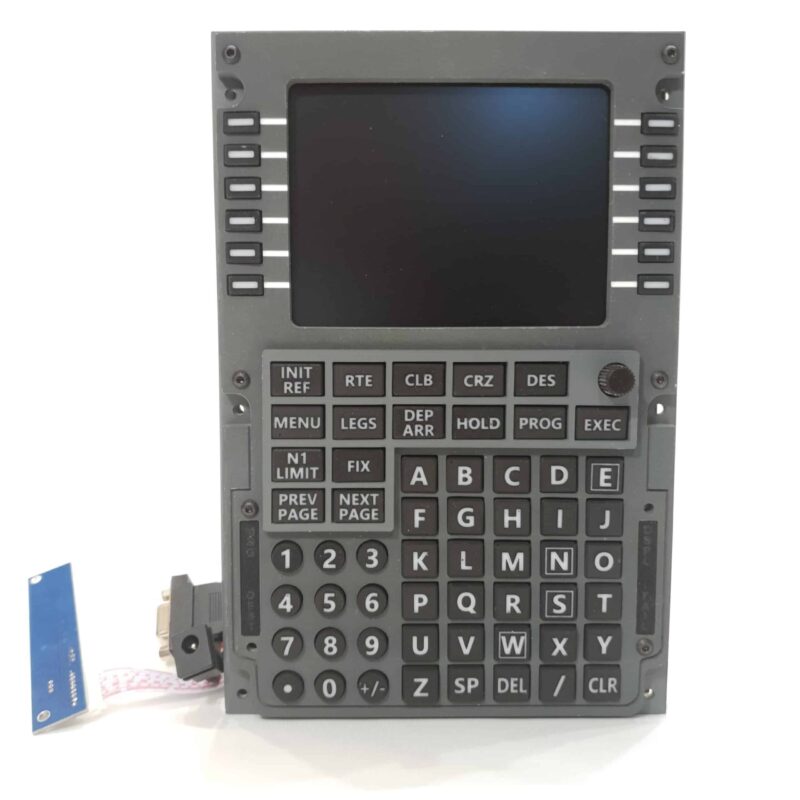

Boeing 737 FMC / CDU Replica Panel: The Heart of Your Flight Simulator

Step into your pilot’s seat and experience the authentic feel of a Boeing 737 Flight Management Computer (FMC) and Control Display Unit (CDU) with this meticulously crafted replica panel. Designed specifically for flight enthusiasts and commercial flight schools, this Boeing 737 FMC / CDU replica panel brings professional-grade avionics right to your setup. Painted in the iconic Boeing gray (RAL 7011 iron gray) and constructed from durable acrylic sheets, this panel combines aesthetics with functionality for a realistic flight simulation experience.

Why Choose This Boeing 737 FMC / CDU Replica Panel?

The primary benefit of owning this panel is to indulge in a truly immersive flight simulator environment. Every detail has been thoughtfully integrated — from the warm white backlighting of the annunciators, buttons, and knobs to the precise positioning of annunciator boxes that mirror those found on actual Boeing aircraft. The interface mimics the original Flight Control Unit, ensuring that you interact with a professional-grade instrument, not just any generic flight sim component.

Features That Elevate Your Simulator

• High-Quality Construction: Two acrylic layers (3mm base and 5mm front) provide physical depth, rigidity, and a sleek iron gray finish that matches Boeing’s original panel colors.
• Comprehensive Controls: Includes all annunciators, annunciator boxes, push buttons, and rotary knobs with and without labels to replicate the genuine FlightSim experience.
• Adjustable Backlighting: Warm white LEDs generate comfortable illumination during low-light sessions, with a separate 12V connector to power the lighting system efficiently.
• Integrated Display: A 5-inch VGA or VIDEO connector display is built right into the panel, powered by a 12V supply, giving you clear, crisp flight data at your fingertips.
• Connectivity & Configuration: The PCB’s backside IDC connector assigns every pin a specific function within the panel, perfect for seamless integration with external FlightSim software.
• Plug & Play Convenience: With the P&P version, a pre-programmed Arduino is included and mounted directly to the PCB’s IDC connector, enabling quick USB setup and software configuration for instant use.
• Customizable Brightness: While the panel features a potentiometer for brightness adjustment, it’s crafted with future upgrades in mind, offering flexibility for evolving FlightSim needs.
• Compact Panel Size: Measuring 150mm x 225mm, this replica fits perfectly on your cockpit setup or simulator desk without consuming too much space.

How Does This Boeing 737 FMC / CDU Panel Improve Your Training and Simulation?

Training professionals and flight enthusiasts alike will appreciate the realistic touch and feel that this Boeing 737 FMC / CDU avionics panel adds to their simulations. Whether you are practicing complex flight management procedures or navigating precision approaches, the tactile feedback from the knobs and buttons enhances muscle memory and situational awareness. It’s like having a real 737 cockpit right in your room.

Addressing Common Concerns

Worried about complicated setups? The P&P version simplifies installation with an Arduino module pre-loaded and ready to connect via USB, backed by detailed configuration files. Concerned about lighting and visibility? The warm white backlighting ensures comfortable viewing without eye strain during nighttime flights. Need durability? The painted acrylic panels provide long-lasting resistance to wear and tear, standing up to continual use in training environments.

Take Control and Elevate Your Flight Experience Today

Don’t settle for basic flight simulators that lack realism. Equip your cockpit with this authentic Boeing 737 FMC / CDU replica panel and unlock a new level of immersive training or hobby flying. Build your pilot skills with realistic feedback, robust avionics components, and seamless software compatibility—all wrapped in a sleek, iron gray painted panel. Whether you’re a serious flight enthusiast or a commercial pilot instructor, this panel is your gateway to replicating authentic Boeing 737 operations with precision and style.

Order now and transform your flight simulator setup with a high-quality, feature-rich Boeing 737 FMC / CDU panel designed for real-world simulation and professional training!

Frequently Asked Questions (FAQ)

What software is compatible with this Boeing 737 FMC / CDU replica panel?

The panel works with a variety of FlightSim software, including popular commercial and hobbyist platforms. The P&P version comes pre-programmed with your requested flight simulation software configuration file, simplifying integration.

Is the panel easy to install in my existing flight simulator?

Absolutely! The P&P version includes an Arduino pre-programmed and mounted to the PCB with USB connectivity, making installation straightforward. The C&P and P&P versions both provide detailed datasheets for easy wiring and setup.

Can I adjust the brightness of the panel’s backlighting?

Yes, the panel features a potentiometer for brightness adjustment. Although it comes without function currently, it’s designed for future firmware or hardware updates to control illumination levels.

Are all buttons and knobs functional?

Yes, all included buttons and rotary knobs replicate the authentic feel and function of the original Boeing 737 controls, allowing push-button and rotary interactions as intended.

What size is the panel and will it fit on a standard flight sim desk?

The panel measures 150mm by 225mm, a compact size ideal to fit comfortably on most simulator desks or cockpit panels without overwhelming your workspace.
