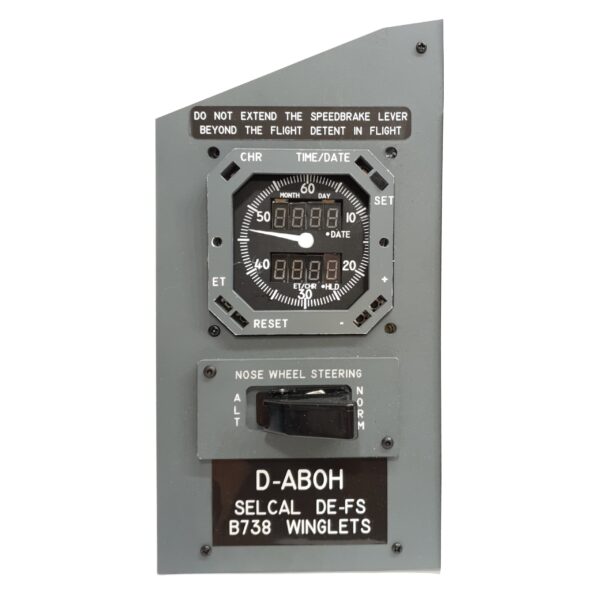

CPT Side MIP Panel Boeing 737

This is a replica of a Boeing 737 MIP CPT Side panel, consisting of two acrylic sheets. The lower layer is 5mm thick and the upper front is 3mm thick.

The panel is painted in Boeing gray RAL 7011 (iron gray).

All annunciators, annunciator boxes, knobs and buttons are included with the Panel Only Set (knobs and buttons are meant as push buttons and rotary knobs with and without label).

The Panel Only Set also comes with the gauge panel.

For the C&P and P&P version:

The backlighting of the panel (and buttons) is warm white.

The backlight has a separate connector for 12 volts.

The Chronos Gauge is warm white backlit as well and stepper driven.

The backside of the PCB features an IDC connector, with each pin assigned to a specific function for the panel.

The data sheet for the connection of the C&P version is available for download or labelled on the backside of the PCB.

For the P&P version:

The P&P version comes with an Arduino pre-programmed with your requested FlightSim software, already mounted to the IDC connectors of the PCB. Simply connect it via USB and install the configuration file we provide to get started.

Panel size: 129mm x 249mm
